Product Details:
Payment & Shipping Terms:
|
| Operation: | Handwheee, Bevel Gear, Electric, Pneumatic | Gate Material: | Stainless Steel |
|---|---|---|---|
| Feature: | Renewable Seat | Face To Face: | MSS SP-81 |
| Surface: | Epoxy Coating | Body Material: | Ductile Iron, Stainless Steel |

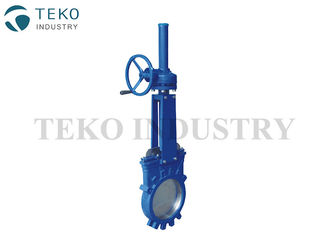

Renewable Seat Semi Lug Gate Knife Valve For Wastewater Process
Description
TEKO Valve knife gate valve product is for severe working condtions such as solids, slurries, wastewater, bulk handling, pulp and paper, and food processing. Valves are available in wafer or lug style, as well as with cast iron bodies or stainless steel bodies. Our knife gate valves come standard with a handwheel but also are available with pneumatic cylinders or multi-turn electric actuators. Extensions, gears and chainwheel operators also are available.
Features:
Handwheel or cylinder operated from 2" through 36" (custom sizes upon request)
Stainless or Ductile Iron body options
Designed to ensure non-clogging shut-off with solids in the pipeline
ANSI or DIN flanged connections
SS knife gate
EPDM, BUNA-N, Viton and TFE seat options to suit virtually any application
Factory assembled and tested
Limit switches, modulating positioners, NAMUR solenoids and many other custom options available
Applications
| Building Materials | Corn Processing | Paper Recycling | Steel/Wire/Cable |
| Bulk Processing | Mining and Dredging | Fly Ash and Coal | Sugar Processing |
| Cement Production | OEM Hoppers | Scrubbers | Industrial Waste |
| DN | L | O | D | S | C | f | M-(UNC) | H | Do | |
| in | mm | |||||||||
| 2" | 50 | 48 | 152 | 120.5 | 95 | 16 | 1.6 | 4-M5/8"-11 | 375 | 180 |
| 2-1/2" | 65 | 48 | 178 | 139.5 | 110 | 16 | 1.6 | 4-M5/8"-11 | 420 | 180 |
| 3" | 80 | 51 | 190 | 152.5 | 127 | 17 | 1.6 | 4-M5/8"-11 | 450 | 200 |
| 4" | 100 | 51 | 229 | 190.5 | 158 | 17 | 1.6 | 8-M5/8"-11 | 512 | 200 |
| 5" | 125 | 57 | 254 | 216 | 186 | 17 | 1.6 | 8-M3/4"-10 | 570 | 220 |
| 6" | 150 | 57 | 280 | 241.5 | 216 | 21 | 1.6 | 8-M3/4"-10 | 665 | 250 |
| 8" | 200 | 70 | 343 | 298.5 | 270 | 21 | 1.6 | 8-M3/4"-10 | 825 | 300 |
| 10" | 250 | 70 | 406 | 362 | 324 | 24 | 1.6 | 12-M7/8"-9 | 1000 | 350 |
| 12" | 300 | 76 | 483 | 432 | 381 | 24 | 1.6 | 12-M7/8"-9 | 1155 | 350 |
| 14" | 350 | 76 | 533 | 476 | 414 | 33 | 1.6 | 12-M1"-8 | 1310 | 400 |
| 16" | 400 | 89 | 597 | 540 | 470 | 35 | 1.6 | 16-M1"-8 | 1475 | 500 |
