Stainless Steel Knife Valve Metal Seated Full Lug ANSI B16.5 Connection For Corrosive Fluid

China Stainless Steel Knife Valve Metal Seated Full Lug ANSI B16.5 Connection For Corrosive Fluid supplier

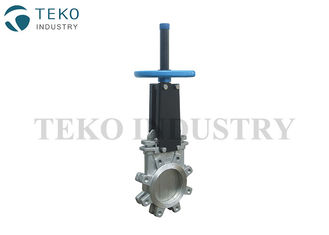

Large Image :  Stainless Steel Knife Valve Metal Seated Full Lug ANSI B16.5 Connection For Corrosive Fluid

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: PZ73X, PZ73H

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 20 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Operation: Multi-turn Bevel Gear Gate Material: Stainless Steel
End Connection: Wafer, Lug Face To Face: MSS SP-81
Design: MSS SP-81 Body Material: Ductile Iron, Stainless Steel

Stainless Steel Full Lug ANSI B16.5 Connection Knife Gate Valves





Features



Designed to handle water, white water, pulp stock, and corrosive fluids in process industries.
● Meets MSS SP-81 for wafer-type knife gate valves.
● Lug bolt pattern matches ASME B16.5 Class 150. Holes tapped.
● 150 psig (10.3 bar) maximum working pressure. 150°F (65°C) maximum working temperature. Applications outside of these conditions require special design considerations.
● Interchangeable with different actuation of Pneumatic, Electric, not need to disassemble from pipeline.

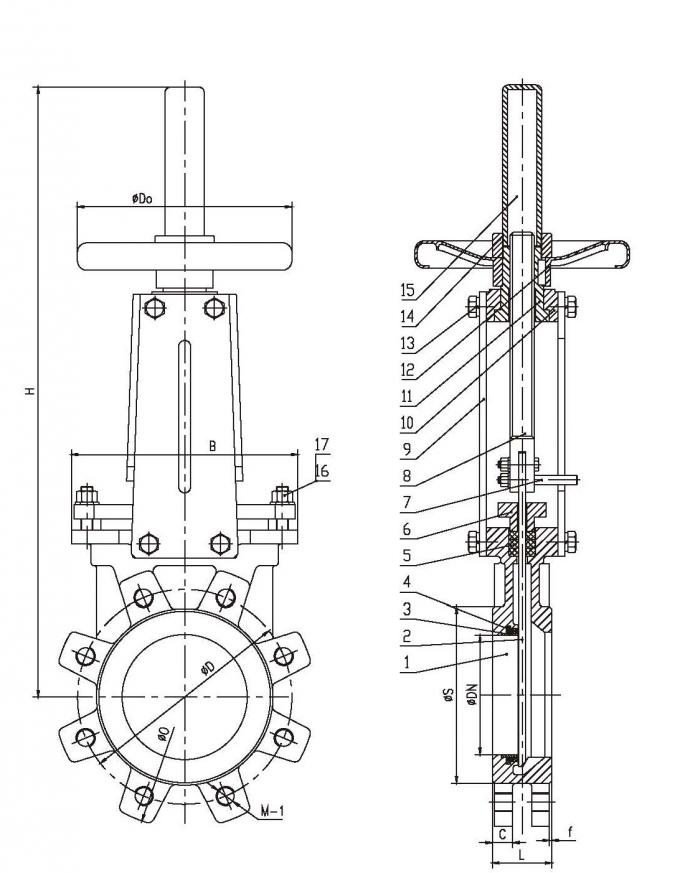

Diemensions & Drawing



Stainless Steel Knife Valve Metal Seated Full Lug ANSI B16.5 Connection For Corrosive Fluid



DN L O D S C f M-(UNC) B H Do
in mm
2" 50 48 152 120.5 91.9 16 1.6 4-M5/8"-11 136 375 180
2-1/2" 65 48 178 139.5 104.8 16 1.6 4-M5/8"-11 151 420 180
3" 80 51 190 152.5 127.0 17 1.6 4-M5/8"-11 170 450 200
4" 100 51 229 190.5 157.2 17 1.6 8-M5/8"-11 190 512 200
5" 125 57 254 216 185.4 17 1.6 8-M3/4"-10 212 570 220
6" 150 57 280 241.5 215.9 21 1.6 8-M3/4"-10 230 665 250
8" 200 70 343 298.5 269.7 21 1.6 8-M3/4"-10 286 825 300
10" 250 70 406 362 323.8 24 1.6 12-M7/8"-9 338 1000 350
12" 300 76 483 432 381.0 24 1.6 12-M7/8"-9 388 1155 350
14" 350 76 533 476 412.7 33 1.6 12-M1"-8 460 1310 400
16" 400 89 597 540 469.9 35 1.6 16-M1"-8 520 1475 500

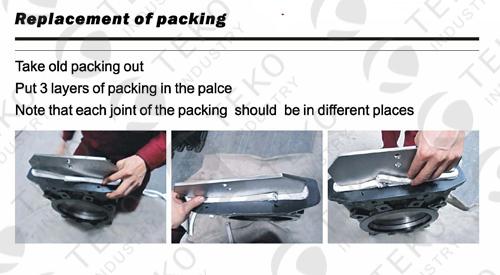

How to replace the packing



Stainless Steel Knife Valve Metal Seated Full Lug ANSI B16.5 Connection For Corrosive Fluid
