Product Details:
Payment & Shipping Terms:
|
| Driven By: | Manual, Penumatic, Electric As Requested | Body Material: | WCB, Stainless Steel |
|---|---|---|---|
| Jecket Fluid: | Hot Steam Or Thermal Oil | Seat Material: | Stellite Coating, Nutride Coating |
| Ball Material: | Hard Face Coating | End Connection: | Flange |
| High Light: | ss ball valve flange type,v port ball valve |
||

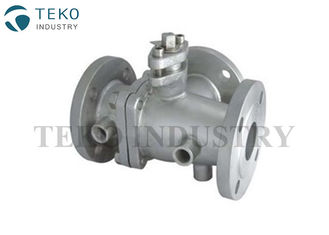

Bitumen Asphalt 3 Way Steam Jacketed Flanged Ball Valve For HIgh Viscosity Fluid
Specifications:
1) Material:Stainless Steel, WCB, A105 etc
2) Size rating:1/2"~4"
3) Working Pressure: Class 150~600 Lb
4) Design Standard: API
5) Suitable temperature: -20°F---400°F (-29°C- 200°C)
6) Face To Face Standard:ANSI B16.10
7) FLANGE END STD:ANSI B 16.5
Material List
| No. | Part Name | Material |
| 1 | Body | WCB |
| 2 | Jacket | A3 |
| 3 | Seat | F304 |
| 4 | Ball | F304 |
| 5 | Gland Plate | WCB |
| 6 | Stem | 2Cr13 |
| 7 | Packing | Graphite |
| 8 | Gland | WCB |
| 9 | Lever | Cast Iron |
Features:
1) Investment casting
2) Blowout proof stem
3) Anti-Static Design
