API 6D 3 Way Flanged Ball Valve , Wide Application Four Way Ball Valve With Solid Ball

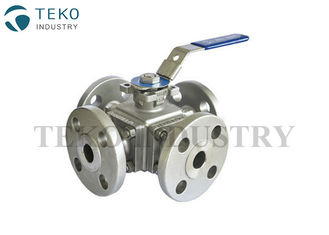

Large Image : API 6D 3 Way Flanged Ball Valve , Wide Application Four Way Ball Valve With Solid Ball

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Q46F/Q44F

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Installation:	Any Direction	Seat Mateiral:	PTFE, RPTFE, Metal Seated
Driven By:	Manual, Motorized, Pneumatic Etc	Bore:	Reduced Bore
Structure:	Four Ways	Working Temperature:	-25~-180℃
High Light:	ss ball valve flange type , flanged end ball valve

API 6D 3 Way 4 Way Wide Application Flanged Ball Valve With Solid Ball

What is four way ball valve?

Our TEKO four-way ball valve is a fluid control valve whose body has four ports equally spaced round the valve chamber and the ball has two passages to connect adjacent ports. It has been widely utilized for the exploiting, refining and transporting systems of oil, gas and mineral

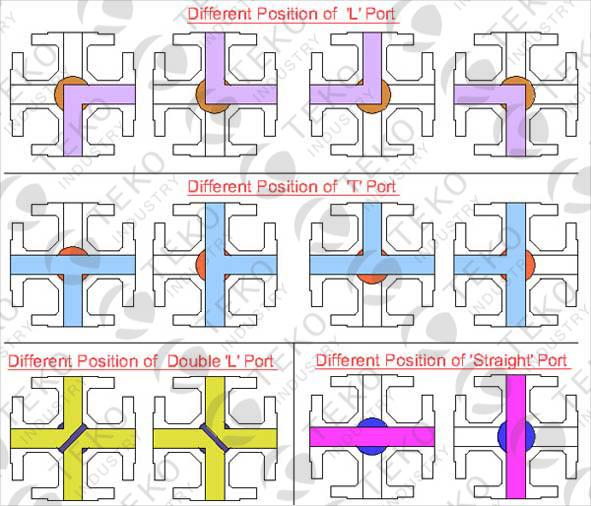

It has two flow positions as shown, and usually a central position where all ports are closed.

API 6D 3 Way Flanged Ball Valve , Wide Application Four Way Ball Valve With Solid Ball 0

It can be used to isolate and to simultaneously bypass a sampling cylinder installed on a pressurized water line. It is useful to take a fluid sample without affecting the pressure of a hydraulic system and to avoid degassing (no leak, no gas loss or air entry, no external contamination).

Parameters

Nominal Diameter		150	200	200	250	250	300	300	350	350	400
			×		×		×		×		×
			150		200		250		300		350
Ball holes d1		150	150	200	200	250	250	300	300	350	350
L		570	570	670	670	760	760	850	850	980	980
H		219	219	273	273	360	360	395	395	430	430
Manual	H1	330	330	398	398	495	495	580	580	625	625
	E	-	-	116	116	116	116	171	171	171	171
	F	-	-	350	350	350	350	400	400	420	420
	W	1050	1050	600	600	600	600	800	800	800	800
Electric	H2	554	554	600	600	652	652	760	760	770	770
Electric	L1	235	235	235	235	235	235	259	259	400	400
Pneumatic	H3	666	666	736	736	926	926	1059	1059	1127	1127
Pneumatic	L2	776	776	736	736	776	776	1060	1060	1060	1060

Material List

Body	Stem	Ball	Sealing Face	Gasket	Packing	Working Temperature	Applicable Medium
WCB	1Cr13	1Cr13	1Cr13	Flexible graphite,	Flexible graphite, braided graphite	-29-425℃	water, gas and oil
WC6	15CrMo	15CrMo	stellite	stainless steel and flexible graphite		-29-425℃
WC9	25Cr2MoV	25Cr2MoV		08mild steel		-29-425℃
LCB	304	304		F304 F316		-46-354℃
CF8	304	304				-196-600℃	part acid, alkali
CF3	304L	304L
CF8M	316	316
CF3M	316L	316L
