Chemical Resistant Mounted Ball Valve Flange Type Electric Actuated Regulating Control

China Chemical Resistant Mounted Ball Valve Flange Type Electric Actuated Regulating Control supplier

Large Image :  Chemical Resistant Mounted Ball Valve Flange Type Electric Actuated Regulating Control

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Q941F

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Installation: Any Direction Medium: Water, Steam, Gas Etc
Driven By: Motorized Electric Actuated Bore: Reduced Bore / Reduced Bore
Structure: Ball Valve Working Temperature: -25~-180℃

Mounted Electric Actuated Regulating Control Flanged Ball Valve For Chemical Resistant





Quick info



Split Body, stainless steel ASTM A351 - CF8M, flanged ANSI 150 ball valve.

• Full port sizes 1/2” to 8”.

• Blow out proof stem, adjustable stem packing.

• PTFE seats, packing and thrust washer.

• Standard grounded stem and ball.

• 100% tested

• PED 97/23/CE

• Standard locking device.

Flange ANSI B16.5, length ANSI B16.10. - Fire Safe approved API 6FA -

BS 6755/2 - Antistatic BS 5146 - ISO 7121.





Material List



1 BODY A351 CF8M 1
2 END CONNECTION A351 CF8M 1
3 BALL AISI 316 (1/2”- 1”1/2) 1
STEEL (2” - 8”)
4 STEM AISI 316 1
5 SCREW STAINLESS 1/2”....2” 4
STEEL 3”....8” 8
6 NUT STAINLESS 1/2”....4” 2
STEEL 6” - 8” 1
7 SPRING WASHER STEEL 2
8 TRAVEL STOP AISI 316 1
9 PACKING GLAND AISI 316 2
10 STEM SEAT PTFE 1
11 HANDLE AISI 316 1
12 STEM SEAT GRAPHITE 1
13 O-RING Viton 2
14 THRUST WASHER PTFE 1
15 SEAT GRAPHOIL 1
16 SEAT PTFE 1
17 BALL SEATS PTFE 2
18 SCREW STAINLESS STEEL 2
19 GROWER AISI 304 2
20 SCREW STAINLESS STEEL 2
21 BODY HANDLE CAST IRON 1



*Other material are available upon request

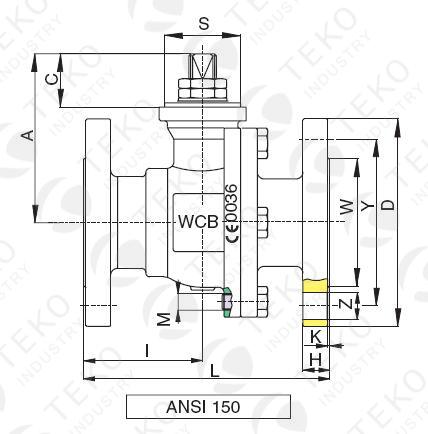

Dimensions:



Chemical Resistant Mounted Ball Valve Flange Type Electric Actuated Regulating Control



SIZE U D Y Z I L M P R A C W H K E F ØN B S
1/2” 0.59 3.5 2.38 Ø0.62x4 1.83 4.25 M10X4 2.72 5.2 2 0.72 1.38 0.45 0.06 M10 0.28 Ø1.65 (F04) M5 1.18
3/4” 0.75 3.88 2.75 Ø0.62x4 2.09 4.62 M10X4 2.8 5.2 2.07 0.72 1.69 0.51 0.06 M10 0.28 Ø1.65 (F04) M5 1.18
1” 0.98 4.25 3.12 Ø0.62x4 2.34 5 M10X4 3.54 6.89 2.76 0.98 2 0.57 0.06 M12 0.31 Ø1.97 (F05) M6 1.38
1”1/2 1.5 5 3.88 Ø0.62x4 3.03 6.5 M12X4 5.2 9.88 4.2 1.21 2.88 0.69 0.06 M16 0.39 Ø1.97 (F05) M6 1.38
2” 1.97 6 4.75 Ø0.74x4 3.39 7 M12X4 5.67 12.68 4.8 1.52 3.62 0.77 0.06 M20 0.55 Ø2.76 (F07) M8 2.17
3” 2.99 7.5 6 Ø0.74x4 3.13 8 M12X8 6.77 15.04 5.96 1.68 5 0.94 0.06 M24 0.71 Ø4.02 (F10) M10 2.76
4” 3.94 9 7.5 Ø0.74x4 4.33 9 M12X8 7.32 15.04 6.5 1.68 6.19 0.94 0.06 M24 0.71 Ø4.02 (F10) M10 2.76
5” 4.92 10 8.5 Ø0.86x4 5.9 14 M12x8 8.18 15.04 7.36 1.68 7.31 0.94 0.06 M24 0.71 Ø4.02 (F10) M10 2.76
6” 5.91 11 9.5 Ø0.86x4 7.13 15.5 M16X8 11.34 27.56 9.65 2.68 8.5 1 0.06 M42 1.18 Ø4.92 (F12) M12 3.35
8” 7.87 13.5 11.75 Ø0.86x4 8.35 18 M20X8 13.07 27.56 11.36 2.68 10.62 1.14 0.06 M42 1.18 Ø4.92 (F12) M12 3.35
