Product Details:
Payment & Shipping Terms:
|
| Body Material: | WCB, CF8, CF8M, Etc | Service: | Corrosive Liquid And Gas |
|---|---|---|---|
| Driven By: | Manual, Pneumatic, Electric, Hydraulic | Bore: | Full Bore |
| Structure: | Ball | Working Temperature: | -25~-180℃ |
| High Light: | ss ball valve flange type,v port ball valve |
||

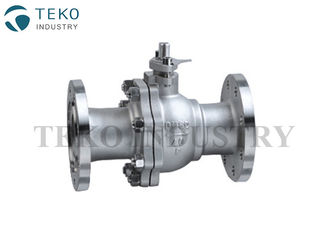

Cast Steel Soft Seated RPTFE Seal Flange End Ball Valve With Wide Applications
Quick Info for soft Seated Ball Valve
| Service: | Compatible liquids and gases. |
| Body: | 2-piece. |
| Line Sizes: | 1/2 to 8" |
| End Connections: | 150# ANSI flange. |
| Pressure Limits: | 28" Hg to 275 psi (-0.7 to 19 bar) up to 392°F. |
| Wetted Materials: | Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE. |
| Temperature Limits: | -20 to 392°F (-29 to 200°C). |
| Other Materials: | O-ring: Fluor elastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC. |
Features
Capable of being configured to fit any applications
Limit switches can be mounted to manual valves for remote monitoring
Vented ball to reduce operating torque
Eliminates threads and reduces installation and maintenance time
Full port design reduces the pressure drop across the value
Different applications for the Soft & Metal Seat of Ball Valve
Soft Seated Ball Valves
Soft seats are generally made of thermoplastic materials like PTFE. They’re great for applications where chemical compatibility is important, and where the tightest seal is the key.
However, soft seats are not recommended for process fluids that are dirty, or abrasive. Soft seats can break down in these conditions, causing the valve to leak.
Metal Seated Ball Valves
The primary advantage of metal seated valves over soft seated valves is their ability to withstand high temperatures and severe service conditions. Metal seats can endure severe flashing, hydraulic shock, abrasive process fluid, and high temperatures up to and exceeding 538℃ . They are also ideal for high erosion or corrosion applications.
Metal seats can be hardened by coatings like ultrasonic spray coating, satellite hard facing, chromium carbide and tungsten carbide.
