Bevel Gear Operation Soft Seat Valve Uni - Directional Seal Stainless Steel For Sewage

Large Image : Bevel Gear Operation Soft Seat Valve Uni - Directional Seal Stainless Steel For Sewage

Product Details:

Place of Origin:	Made In China
Brand Name:	TEKO
Certification:	CE Certificate
Model Number:	PZ573X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	By Negotiation
Packaging Details:	By polywooden cases
Delivery Time:	15 days after deposite
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50 tons per month

Contact Now

Detailed Product Description

Material:	Ductioe Iron, Stainless Steel	Seat:	EPDM, PTFE, NBR
Zero Leakage:	Yes	Drill Standard:	ANSI DIN
End:	Lug, Wafer, Flange	Hydraulic Testing:	1.1 Times Of Rating Pressure
High Light:	pneumatic knife valve , cast steel valves

Bevel Gear Operation Uni-directional Seal Soft Seateds Knife Gate Valve For Sewage

Introduction

The TEKO knife gate is a uni-directional seal wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:

Pulp and Paper
Power plants
Wastewater treatment plants
Chemical plants
Food and Beverage
Bulk handling
Mining
etc.

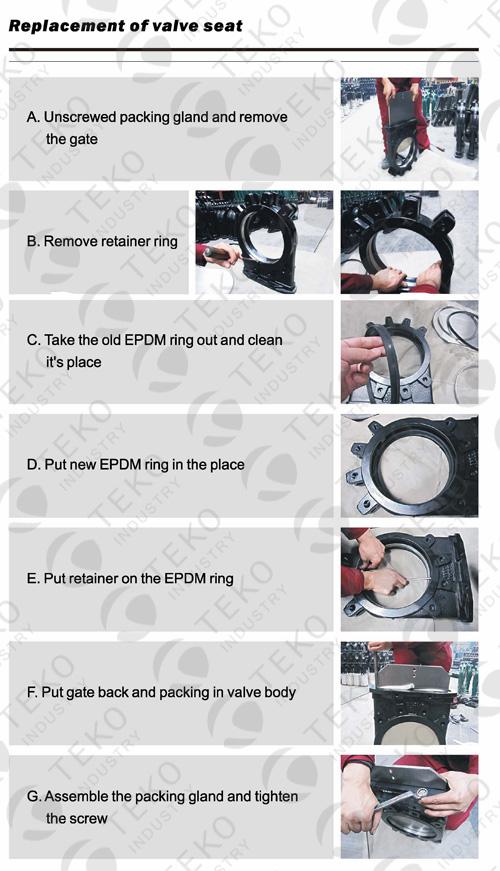

Featuring a replaceable steel reinforced elastomer seat for enhanced sealing, the TEKO gate valve is easily automated for on/off applications.

1. Designed for easy, quick conversion between manual and pneumatic actuation. Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance.*
2. Unique design and horizontal bolting stabilizes gate ensuring proper alignment.
3. Standard multi-layer square packing provides exceptional gland sealing.
4. Optional energized quad seal packing for enhanced gland sealing.
5. Anti Extrusion Ring minimizes the gap between the body and the gate
6. Unrestricted flow path with minimal pressure drop achieved through full port valve design.
7. Deflection resistant gate design ensures consistent alignment for industry leading durability.
8. Replaceable flexible wire reinforced elastomer seat ensures bidirectional zero leakage shutoff.

Sizes:
DN 50 to DN 1200 (larger diameters on request)

Max. Working Pressure

Size	Pressure
DN50-DN250	10 kg/cm2
DN300-DN450	7 kg/cm2
DN500-DN600	4 kg/cm2
DN700-DN900	2 kg/cm2
DN1000-DN1200	1 kg/cm2

Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150)

Note: other flange connections (on request):
EN1092 PN6/16/25
BS D and E
ANSI 125

Bevel Gear Operation Soft Seat Valve Uni - Directional Seal Stainless Steel For Sewage 0
