Stainless Steel Flanged Ball Valve , 2PC Two Piece Ball Valve With PTFE Seat

China Stainless Steel Flanged Ball Valve , 2PC Two Piece Ball Valve With PTFE Seat supplier

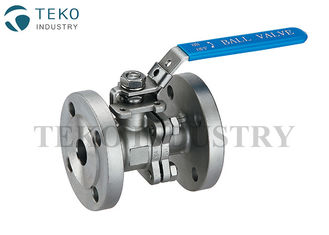

Large Image :  Stainless Steel Flanged Ball Valve , 2PC Two Piece Ball Valve With PTFE Seat

Product Details:

Place of Origin: China
Brand Name: TEKO
Certification: CE Certificate
Model Number: Q41F

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Payment Terms: L/C
Contact Now
Detailed Product Description
Material: Stainless Steel End: Flange
Pressure Rating: 150LB-300Lb Operation: Manual Or Worm Gear
Seat Materail: PTFE, RPTFE OR Develon Ball Material: SS 304/SS201/SS316

 American Market Two Pieces 2PC Flange Ball Valve With PTFE Seat



Features

  • Wrench operator
  • Fire safe stem and body graphite seals
  • Air tested seat leakage: 85 PSI
  • Hydraulic tested body: 1124 PSI
  • Locking device comes standard
  • 100% leak tested
  • Wetted surfaces contain less than .25% lead content

 Applied Stanard

  • ASME B16.33 (125 PSIG) (2")
  • ASME B16.38 (125PSIG) (3"-8")
  • CGA 3.16 (125 PSI)
  • Conforms to ANSI B16.34
  • Flange: ANSI B16.5
  • Face to Face: ANSI B16.10
  • API 607 Fire Safe
  • NACE 01-75 Stainless Steel Approved

Shipping



Part # Size Carton Weight
600-228 2" 1 28
600-230 3" 1 62
600-231 4" 1 106
600-232 6" 1 225
600-233 8" 1 404
