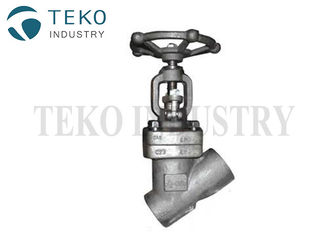

High Pressure API 602 F304 F316 Stainless Steel Globe Valve

High Pressure API 602 SW Flange End F304 F316 Stainless Steel Globe Valve

Description

The design of the compact but very strong, because of the service, high solid CoCr alloy wedge (optional) ensures low friction and long service life, packing ring preloading 4000 psi with high integrity seal welded bonnet valves, valve cover internal thread, torque to engineering torque value, the valve bonnet joint made of welding strength, can double to prevent leakage.(body/bonnet threads and strength welds), fully guided wedge reduces wear on seat surfaces, optional dual packing, leak free connection, live load and packing blow out for easy removal of old packing.

Features:

1. Seat faces lapped for smooth finish and superior sealing;

2. Swivel disc for optimal seating and longer seat life;

3. Stems of hand wheel operated valves are rotating / rising design;

4. Each valve is shell, seat and backseat pressure tested per industry standard API 598;

5. Gland is two piece gland / gland flange design for optimal alignment and uniform packing compression;

6. Alternate valve materials such as chrome and stainless steel alloys -Alternate trim materials -Bypass, drain and other auxiliary connections -Gear, motor, and cylinder actuators available .

Product Range:

Body material: A105

Nominal diameter: 1/2"～2 1/2"

Pressure range:Class150～2500(PN10~PN420)

End connection: RF, RTJ, BW

Working temperature:-29℃～560℃

Operation: Handwheel, Gear Box, Electric Actuator, etc.

Material

Dimensions

800Lb

1500Lb
