Full Port Forged Steel Valves , High Pressure Welded Flanged End Bolted Bonnet Gate Valve Class 800 ~ 2500LB

China Full Port Forged Steel Valves , High Pressure Welded Flanged End Bolted Bonnet Gate Valve Class 800 ~ 2500LB supplier

Large Image :  Full Port Forged Steel Valves , High Pressure Welded Flanged End Bolted Bonnet Gate Valve Class 800 ~ 2500LB

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Z61Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 10 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Size: 1/8" To 2" Type: Gate
Port: Conventional Port, Full Port Material: A105, F304,F316
End Conection: Flange,Weld Class: 800~2500Lb

F11 / F22 / F91 High Temperature High Pressure Welded Flanged End Bolted bonnet Gate Valve For Class 800~2500LB



TEKO forged steel valves are available in bolted or welded bonnet designs. For BB design valve, SS+graphite spiral wounded gasket will be applied. Our F91 forged steel gate valve conforms to API602, BS5253 and ASME B16.34. Each valve is inspected and tested in accordance with API598.





Construction



Stem seal consists of flexible graphite packing with anti-extrusion rings for optimum sealing

Two piece self aligning packing gland

Impactor handwheels or chain wheels are available as an option

Conventional port or Full port

Socket weld ends to ASME B16.11

Threaded Ends to ANSI/ASME B1.20.1

Handwheel is rugged with knobs to provide positive grip

Full range of actuators and accessories to meet automation requirements

Available in carbon, stainless steel and other materials





Standard Material Specifications



Full Port Forged Steel Valves , High Pressure Welded Flanged End Bolted Bonnet Gate Valve Class 800 ~ 2500LB



NO. Part Name CS to ASTM AS to ASTM SS to ASTM
A105 F22 F304(L) F316(L)
1 Body A105 A182F22 A182F304(L) A182F316(L)
2 Seat Ring A276420 A276304 A276304(L) A276316(L)
3 Wedge A182F430&410 A182F304 A182F304(L) A182F316(L)
4 Stem A182F6 A182F304 A182F304(L) A182F316(L)
5 Gasket Corrugated SS+graphite SS+PTFE
6 Bonnet A105 A276f304 A276F304(L) A276F316(L)
7 Bonnet Bolt A193B7 A193B16 A193B8 A193B8M
8 Pin A276420 A276 304
9 Gland A276410 A182F304(L) A182F316(L)
10 Gland Eyebolt A193B7 A193B16 A193B8 A193B8M
11 Gland Flange A105 A182F11 A182F304(L) A182F316(L)
12 Gland Nut A1942H A1944 A1948 A194 8M
13 Yoke Nut A276420
14 H.W.Lock Nut A1942H A1944 A1948 A194 8M
15 Nameplate SS
16 Handwheel A197
17 Bearing Gasket A473431
18 Stem Packing Flexible PTFE
Suitable Medium W.O.G.etc W.O.G.etc HNO 3 ,CH 3 OOH etc
Suitable Temperature -29oC~425oC -29oC~550oC -196oC~200oC

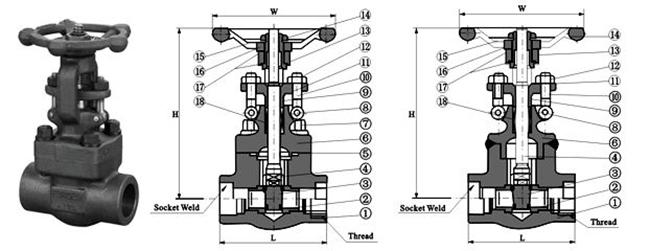

800LB, Dimension (mm) and Weight (Kg)

NPS Conv. 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
Full   3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
L 79 79 92 111 120 120 140 178
H(Open) 158 158 169 197 236 246 283 330
W 100 100 100 125 160 160 180 200
Weight
(KG)
Bolted 2.1 2.0 2.3 4.3 5.9 6.9 11.1 15.2
Welded 1.8 1.7 2.0 3.8 5.1 6.1 10.2 14.2



900LB~1500LB, Dimension (mm) and Weight (Kg)

NPS Conv. 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
Full   3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
L 92 111 111 120 120 140 178 210
H(Open) 169 197 197 236 246 283 330 354
W 100 125 125 160 160 180 200 240
Weight
(KG)
Bolted 2.5 4.3 4.2 6.6 8.8 12.5 17.2 23.5
Welded 2.4 4.2 4.0 6.3 8.7 12.1 17.2 22.0
