High Pressure Check Forged Steel Valves Piston Type Swing Type In ASTM A182 F304 F316

China High Pressure Check Forged Steel Valves Piston Type Swing Type In ASTM A182 F304 F316 supplier
High Pressure Check Forged Steel Valves Piston Type Swing Type In ASTM A182 F304 F316 supplier High Pressure Check Forged Steel Valves Piston Type Swing Type In ASTM A182 F304 F316 supplier

Large Image :  High Pressure Check Forged Steel Valves Piston Type Swing Type In ASTM A182 F304 F316

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: H41Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Design: API 602 Service: Water, Gas, Steam, Oil
Port Size: 3/8" ~2" Trim Number: Trim 8 As Standard
Material: A105 Pressure Rating: 150Lb~1500Lb

High Pressure Check Forged Steel Valves Piston Type Swing Type In ASTM A182 F304 F316



PRODUCT REVIEW



Forged Steel Check Valve, Stainless Steel F304/316/304L/316, Reduced Bore, In  accordance with API602, Bolted bonnet and weld bonnet available.



MANUFACTURING STANDARDS

DESIGN BS: 5352 / API 602
ENDS Fabricated : ANSI B 16.5 / BS 1560
TESTING BS: 5146 / API 598



TEST AS PER API 598

CLASS TEST PRESSURE IN Kg / cm2
HYDROSTATIC
BODY SEAT
150 30 22
300 76 55

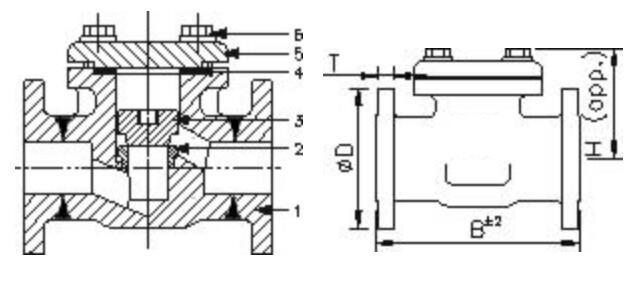

MATERIAL & DRAWING

High Pressure Check Forged Steel Valves Piston Type Swing Type In ASTM A182 F304 F316

No. PART MATERIAL
1 Body S.S. AISI 304
2 Seat Ring S.S. AISI 304
3 Plug S.S. AISI 304
4 Gasket Spiral Wound, S.S. filled with Asbes.
5 Cover S.S. AISI 304
6 Bolt ASTM A 193 Gr. B7



CLASS 150Lb

SIZE DIMENSIONS
Inch mm B D T H
0.5 15 108 89 11 54
0.75 20 118 99 11 63
1 25 127 108 11 77
1.25 32 140 118 12.7 98
1.50 40 155 127 14 98
2 50 203 152 16 105


CLASS 300Lb

SIZE DIMENSIONS
Inch mm B D T H
0.5 15 152 95 14 54
0.75 20 178 118 16 63
1 25 203 124 17.5 77
1.25 32 216 134 19 98
1.50 40 229 156 20.5 98
2 50 267 165 22 105
