Product Details:
Payment & Shipping Terms:
|
| Operation: | Gear | Body Configuratio: | Wafer, Lug, Flange |
|---|---|---|---|
| Body Material: | WCB, Stainless Steel | Seat Material: | RPTFE, Metal Seated, Fire Safe |
| Design: | API 609 | Structure: | Replaceable Seat |
| High Light: | ASME B16.3 High Performance Butterfly Valve,144”High Performance Butterfly Valve |
||
Full Metal-to-Metal Triple Eccentric High Performance Butterfly Valve With Replaceable Seat
Applicable Standards
Design & Manufatuer: JB/T 8527, API609, ASME B16.3
End Connection: GB/T 12221, API609, ASME B16.46
Face to face: API609
Test & Inspection: API 598, ISO 5208
Specifications:
| Nominal Size | 2”-144” |
| Nominal pressure | Class 150 ~ Class 1500 |
| Temperature Range | -196~600 ℃ |
| End | Flange, Wafer, BW, Lug etc |
| Material | Carbon Steel, high temperature steel, Stainless steel, Titanium alloy, monel etc. |

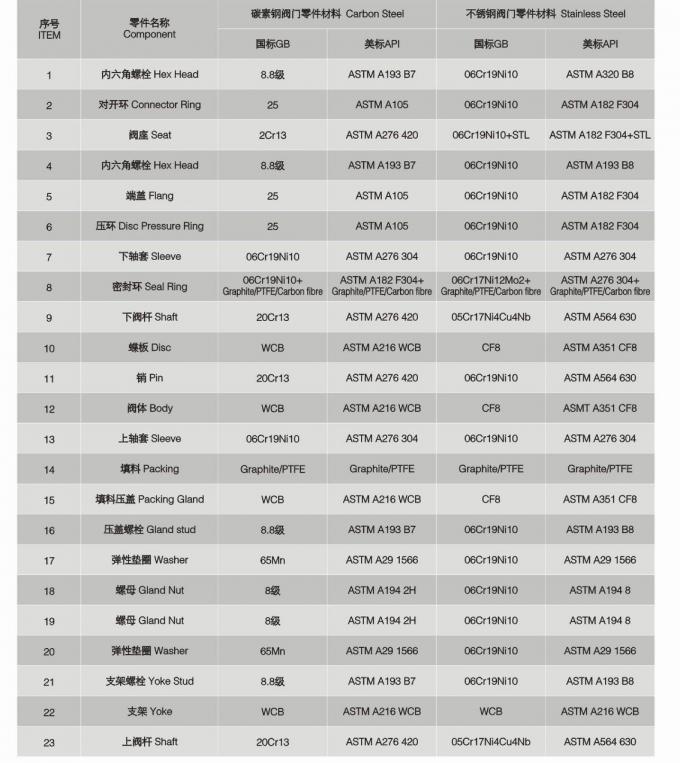

Main Material
Features
