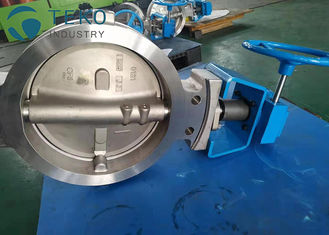

High Temp Wafer Lug Type Modulating Butterfly Valve Worm Gear Stainless Steel

China High Temp Wafer Lug Type Modulating Butterfly Valve Worm Gear Stainless Steel supplier
High Temp Wafer Lug Type Modulating Butterfly Valve Worm Gear Stainless Steel supplier High Temp Wafer Lug Type Modulating Butterfly Valve Worm Gear Stainless Steel supplier

Large Image :  High Temp Wafer Lug Type Modulating Butterfly Valve Worm Gear Stainless Steel

Product Details:

Place of Origin: Made In China
Brand Name: TEKO
Certification: API 607 Certificate
Model Number: D72F

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By polywooden cases
Delivery Time: 15 days after deposite
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10 tons per month
Contact Now
Detailed Product Description
Design: High Performance Seat Material: WCB, CF8, CF8M
Seat: RPTFE, Viton, PPL Pressure: 150Lb, 300lb, 600Lb, 900Lb
Temperature Of Media: 220~500 Upon Material Port Size: Standard
Connection: Wafer,flange, Lug

Worm Gear Stainless Steel High Temp Wafer Lug Type Modulating Butterfly Valve



Product Overview:



TEKO two offset high performance butterfly valve are designed in accordance with API609 with advantages of bi-directional, light weight, cost-effective and low operation torque. Wide working temperature range covers -196℃~816 ℃, ideal for most various industry flow control system



Design Features:

With unique design, Our High Performance Butterfly Valves are specially used for applications in the chemical, hydrocarbon processing, pulp & paper, water & wastewater and HVAC industries worldwide. The valve was designed with an understanding that process industries need products that provide exceptional performance while reducing the total cost of ownership.

TEKO butterfly valves have been rigorously tested to meet industry performance requirements. A fully supported one-piece shaft and heavy-duty bearings ensure perfect alignment of seat and disc leading to long life and trouble-free performance. We TEKO offers a wide variety of seat options including PTFE seat, reinforced PTFE seat, flexible metal seat and a dual seat.



Main Material



PART NAME ANSI Class 150 ANSI Class300 ANSI Class600
BODY

Carbon Steel(A216-WCB)

SS316 (A351-CF8M)

DISC SS316 (A315-CF8M)
STEM 17 / 4PH (A564-630)
SEAT PTFE, RTFE, SS316, Inconel, PTFE+SS316, RTFE+SS316
SHAFT BEARING SS316+RTFE Impregnated, SS316+Graphite Impregnated
PACKING SEAL PTFE, Graphite





Applications

  • High-pressure water, oil, steam, gas, and slurry applications
  • Chemical and petrochemical processing
  • Utilities
  • Pulp and paper
  • Oil and gas production
  • Fuel handling systems
  • Air conditioning and refrigeration
  • Marine
