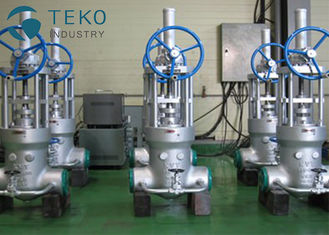

Large Image :  Butt Weld Wedge Gate Valve , Dynamic High Pressure Seal Parallel Double disc slide valve

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: Z544Y/F

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Features: K Shape Double Disc Body Material: WCB/CF8/CF8M
End Connection: Flange, Butt Weld Size Rating: NPS 2"-48"
Applications: WOG Etc. Bonnet Seal: Bolted Bonnet, Pressure Seal
Application: Oil,Gas

Dynamic Seal High Pressure Pressure Seal Parallel Double Disc Slide Gate Valve



Nowadays, the wedge type gate valve has been used mostly. But there are some problems when using solid wedge gate valves:



1. Malfunction of disc opening due to Thermal Binding
In wedge type valves, thermal binding is caused by dimensional interference between wedge and seat, due to temperature differences and thermal expansion. Valves are commonly used at high.

2. Leakage problems due to thermal deformation
Since the sealing of the valve is obtained by compression, enough surface pressure between discs and seats is necessary. The bodies should be designed to be thick and strong in order to stand again.



To solve the above problem, here we developed our parallel disc gate valve. Here are our design:



1. The parallel slide gate valve closes with a sliding action instead of the usual compression, so there is no tendency, notch or indent on the sealing surfaces. This result of this action can bring a better tightness to the disc on the seat-ring, and a longer lifetime of the discs and seat sealing surfaces.

2. Parallel-slide gate valve has a cleaning function with intimate contact on the seats during the closing action. So if any impurities appear or tendency on the seats and discs, they are eliminated and the sealing contact is free from undesirable particles. It also reduces seat bearing stress and guarantees long life. The wide flat seating can minimize the effect of minor damages on the surface as sealing occurs over the entire surface.

3. No additional power and final surge of torque are required to make the seating leak-tight because sealing is obtained by sliding, not by compression. Furthermore, the valve operates with low energy because there is no need of high energy when opening the valves.

4. Actuator size of the parallel slide gate valve can be much smaller than the wedge type. Hammering or impacting hand-wheels are not usually necessary on this valve.

5. The low torque operation brings less stress and fatigue on the trim. This gives longer lifetime and greater leak-tight reliability.

6. When the valve is closed, the exact position of stem dose not play a great role. As a result, there is no problem with the differences in the thermal expansion coefficient of the materials. Also, the actuators can be stopped with general position switches.

7. The possible jam found in wedge gate valves as result of body contraction will never occur in parallel slide gate valves.

8. In wedge gate valves, the wedge must have positioning guides on its slides to keep it inline while closing under full flow condition. These guides are not usually made of any hard materials, and tend to wear, and eventually may cause jamming.



Quick Info


MAIN MATERIAL Carbon, Alloy or Stainless Steel Titanium & Nickel Alloy(Hastelloy) Incoloy, Inconel, Monel, Super, Duplex, etc.
SIZES FROM 1/2″ – 24″ (15mm – 600mm)
CLASSES ASME 300 / 600 / 900 / 1500 / 2500
SIZES FROM Pneumatic, Electrical, Hydraulic Power Operated Parallel
