Product Details:
Payment & Shipping Terms:
|
| Features: | Wedge Shape Disc | Body Material: | WCB/CF8/CF8M |
|---|---|---|---|
| Size Rating: | NPS 2"-48" | Applications: | WOG Etc. |
| Bonnet Seal: | Bolted Bonnet, Pressure Seal | Rating: | 150Lb~1500Lb |
| Material: | Cast Steel, Stainless Steel | ||
| High Light: | electric actuated gate valve,wcb gate valve |
||

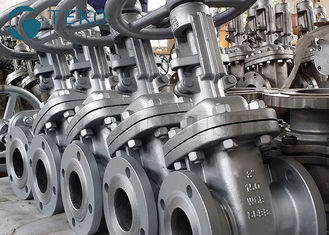

Cast Steel 150Lb Solid Wedge Gate Valve For Oil & Gas Applications
Quick Details
| Product Name | Cast Steel 150Lb Solid Wedge Gate Valve |
| Valve Type | Cast Steel 150Lb Solid Wedge Gate Valve |
| Size Range | DN50~DN1000, 2"~40" |
| Pressure Range | CLASS150~2500 |
| Connection End | RF, RTJ, BW |
| Standard | API600, ASME B16.34, API 598, MSS SP-25 |
| Operation Way | Manual, Pneumatic Actuator, Electric Actuator |
| Packing Method | Standard Sea worthy duly wooden boxs |
| Shipment Way | By Express, By Air or BySea, as customer request |
Construction is as follows:
- Full Port or Standard Port
- Outside Screw and Yoke(OS&Y)
- Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded
and pressure seal bonnet
- Backseat
- Solid or Flexible Wedge
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5 and B16.47
Main Part & Materials:
| Part Names | Part Materials | |||||||
| Body | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Bonnet | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Disc/Ball/Wedge | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Stem | F6a | F304 | F6a | F304 | F316 | F304L | F316L | C83600/C95800 |
| Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | SS304 | SS316 | SS304L | SS316L | C83600/C95800 |
| Packing | Graphite/PTFE | |||||||
| Gasket | SS304+Graphite/SS304+Graphite | |||||||
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. | |||||
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C |
FAQ
Q: Is sample order acceptable?
A: Yes
Q: After-sales service
A: 1year warranty for all kinds of products. As an experienced manufacturer, you can rest assured of the quality and sales service
Q: Payment
A:T/T, Paypal, L/C
Q:Transportation
A:Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea
Q: Do you provide free sample?
A:Usually we do not offer free sample
Q:Could you print our company LOGO on the nameplate and package?
A:Yes, we can do that
Q: Do you accept custom design on size?
A:Yes, if the size is reasonable
