High Pressure Concentric Butterfly Valve Carbon Steel Body Fire Safe Seat

China High Pressure Concentric Butterfly Valve Carbon Steel Body Fire Safe Seat supplier

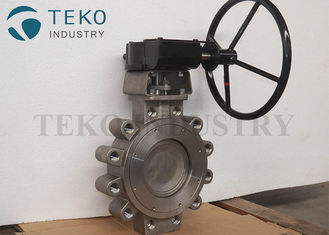

Large Image :  High Pressure Concentric Butterfly Valve Carbon Steel Body Fire Safe Seat

Product Details:

Place of Origin: Made In China
Brand Name: TEKO
Certification: CE Certificate
Model Number: D72F

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By polywooden cases
Delivery Time: 15 days after deposite
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10 tons per month
Contact Now
Detailed Product Description
Design: Double Eccentric Material: WCB, CF8, CF8M
Disc: CF8/CF8M Shaft: 17-4PH, XM-19
Seat: RPTFE, Viton Port Size: 16"~144"
Pressure: 150Lb, 300lb, 600Lb, 900Lb

Carbon Steel Body Fire Safe Seat High Pressure Concentric Butterfly Valve



  • Automated with Pneumatic Spring Return Actuator
  • Automated with Pneumatic Double Acting Actuator
  • Automated with Electric Actuator (optional Explosion Proof)
  • Wafer and Lug Style
  • Sizes 2” – 36”( larger sizes available)

Features and Benefits

  • Standard body materials are 316 SST or WCB. Application specific options include: Alloy 20, Monel, CD3MN, Hastelloy C, Inconel 625, Aluminum Bronze, LCB and others.
  • Standard seat materials are RTFE, RTFE/316L SST (Firesafe), and 316L SST (metal seat). Application specific seat materials include: 50/50 STFE, PTFE, PEEK, UHMWPE, TFM-1600 and Inconel 625.
  • RTFE and Firesafe seat designs offer bubble-tight, bi-directional shutoff to full ANSI/ASME Class 150# and 300# standards. Metal seat design offers Class V shutoff.
  • Blow out proof stem design
  • Square Stem
    Stem design facilitates direct mounting of pneumatic and electric actuators or gear operators through 12”. Standard Stem Material is 316 SST for 150# and 17-4 pH or XM-19 for 300#.
  • Live Loaded Packing
    Power-Seal HPBFVs come standard with Live Loaded packing. Three sets of Belleville washers are added to each gland stud to maintain a self-adjusting packing load.
  • Application Specific Stem Packing
    Standard packing is Graphite. Application specific options include: Double PTFE V-ring or Double PTFE Inverted packing.
  • Internally Cast Travel Stop
    Travel Stop prevents over rotation of the disc in an effort to limit possible seat damage.
  • Seat Retainer Design
    Seat retainer is designed so the fasteners do not interfere with the flange gasket sealing surface.

Seat Designs

  • Soft Seat design
    RTFE seat for bubble-tight shutoff of general purpose applications up to 450°F.
  • RTFE/316L SST fire-safe seat design
    Primary RTFE seat for bubble-tight shutoff backed up by secondary 316L SST fire-safe seat. Secondary fire-safe seat provides Class V shutoff when primary RTFE seat is compromised in a fire event.

Main Parts Material



No. Part Name Carbon Steel Stainless Steel
1 Body ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
2 Disc ASTM A351 CF8 ASTM A351 CF8 ASTM A351 CF8M
3 Insert Carbon Steel 316 316
4 Seat RPTFE or PPL
5 Shaft 17-4PH 17-4PH 17-4PH
6 Packing Gland ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
7 Packing RPTFE
8 Packing Pad 316 316 316
9 Sleeve 316+RPTFE
10 Shaft colar 316 316 316
11 Pin 17-4PH 17-4PH 17-4PH
12 Bolt, nut Carbon Steel SS SS
