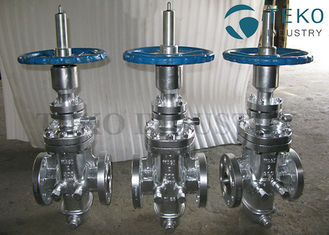

Butt Weld Wedge Gate Valve , Self - Tightening Slab Expanding Gate Valve For Natural Gas

: Large Image : Butt Weld Wedge Gate Valve , Self - Tightening Slab Expanding Gate Valve For Natural Gas

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	Z543W

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Features:	Slab Wedge	Body Material:	WCB/CF8/CF8M/CF3/CF3M
End Connection:	Flange, Butt Weld	Size Rating:	NPS 2"-48"
Applications:	WOG Etc.	Seat Material:	PTFE

API 6D Through Conduit High Pressure Self-tightening Slab Expanding Gate Valve For Natural Gas

TEKO INDUSTRY produces a full range of through conduit gate valves for production, processing and transmission applications.

Through conduit gate valves provides superior bubble tight sealing capabilities in gas services and unmatched robustness in harsh services with high pressure, high temperature and sand service.

Our through conduit gate valve comply with the following standards:

-API 6D

-API 6A

-ANSI B16.34

-API 6FA

-PED

Features

-Full bore

-Piggable

-Double block and bleed, double isolation

-Bubble tight

-Bolted bonnet

-Rising stem

-Stem back-seat

-Soft or metal seated

-Fire safe

-Fugitive emission

Material

-Carbon Steel

-Low temperature carbon steel

-Stainless austenitic and superaustenitic

-Duplex

-Nickel Super Alloy

Double Block & Bleed

When the valve is at closed position, and with equal or no pressure, both spring loaded seats can shut off the line pressure independently from both upstream and downstream sides. Thus blocking both sides and the body cavity can be bleed out by opening the drain plug. This creates a DBB Double Block & Bleed scenario.

Butt Weld Wedge Gate Valve , Self - Tightening Slab Expanding Gate Valve For Natural Gas
