Flanged End Bolted Bonnet Wedge Parallel Disc Gate Valve Class 150 ~ 2500Lb

China Flanged End Bolted Bonnet Wedge Parallel Disc Gate Valve Class 150 ~ 2500Lb supplier
Flanged End Bolted Bonnet Wedge Parallel Disc Gate Valve Class 150 ~ 2500Lb supplier Flanged End Bolted Bonnet Wedge Parallel Disc Gate Valve Class 150 ~ 2500Lb supplier

Large Image :  Flanged End Bolted Bonnet Wedge Parallel Disc Gate Valve Class 150 ~ 2500Lb

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Z41H, Z541Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Body Material: Cast Steel Disc: Wedge, Double Disc, Parallel
Trim Number: As Per API600 Bonnet Seal: Bolted Bonnet Or Pressure Seal
Pressure Class: Class 150LB ~1500Lb Design: API 600, ASME B16.34

Flanged End Bolted Bonnet API Standard WCB body Wedge Disc Parallel Disc Gate Valve Class150~2500Lb



TEKO Valves



Since establishment in 2010, TEKO soon became one of leading players on valve industry, thanks to our engineering efforts, developing new design to improve product reliability in the power generation sector, petrochemical industry, oil & gas sector and water works.



Flanged End Bolted Bonnet Wedge Parallel Disc Gate Valve Class 150 ~ 2500Lb

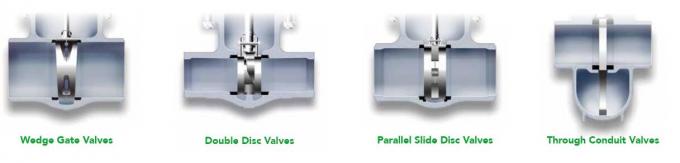

Wedge Gate Valves



API wedge gate valve are commonly supplied with solid wedge up to 2” size and with flexible wedge for larger sizes. The later design consists of two independent and flexible wedge halves, that allow a relative movement to accommodate changes in the body seat angels. The result is a valve with a high pressure sealing performance, with optimum results at low differential pressures, meeting industrial valve requirements, moved toward larger sizes and higher pressure and temperatures.



Design: ASME B16.34, API600 for cast valves and API602 for small size forged valves.

Testing: API 598 and ASME B16.34

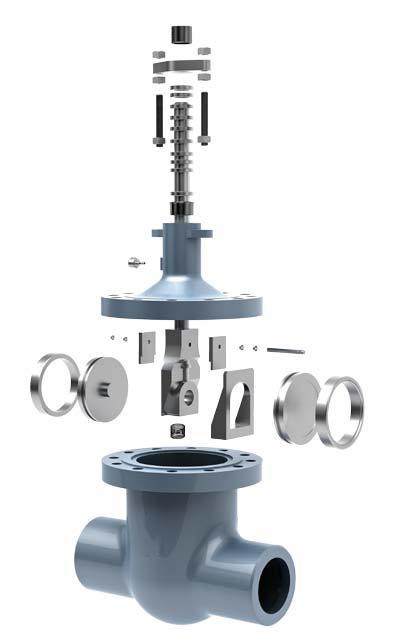

Double Disc Gate Valves



Our double disc valve incorporates a double disc, wedge and seat system which makes this design unique, being designed to assure a reliable operation under most severe service conditions.



The two independent trunnion mounted discs which permit each disc to rotate in a few degrees during closing. This rotation feature allows the discs to seat in a different position on each closing stroke which provides even wear and prevents small imperfection from growing into major leaks.



Design: ASME B16.34, API600, BS1414

Testing: AMSE B16.34, API598, BS EN12266-2



Flanged End Bolted Bonnet Wedge Parallel Disc Gate Valve Class 150 ~ 2500Lb



Quality Assurance



To guarantee high levels of quality for all of our gate valves, our QA department implements a rigorous control and testing system throughout the manufacturing process. Moreover, TEKO vales keeps an operational quality control and assurance manual that enables us to maintain optimum quality levels.



The valves will be tested during design phase and after assembly, prior to shipment.
