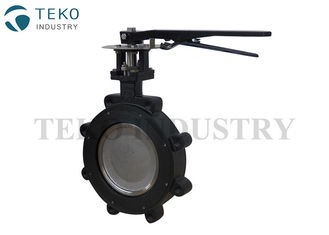

Fire Safe High Performance Butterfly Valves , Manual Double Offset Butterfly Valve

China Fire Safe High Performance Butterfly Valves , Manual Double Offset Butterfly Valve supplier
Fire Safe High Performance Butterfly Valves , Manual Double Offset Butterfly Valve supplier Fire Safe High Performance Butterfly Valves , Manual Double Offset Butterfly Valve supplier

Large Image :  Fire Safe High Performance Butterfly Valves , Manual Double Offset Butterfly Valve

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: D72W

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Driven By: Manual, Pneumatic, Electric Installation: Any Direction
Feature: API607 Fire Safe Size Rating: 2" To 60"
Body Material: WCB, Stainless Steel Temperature: High Temperature Service

Fire Safe Double Offset Metal Seated High Performance Butterfly Valves



DESIGN FEATURES:

With unique design, Our High Performance Butterfly Valves are specially used for applications in the chemical, hydrocarbon processing, pulp & paper, water & wastewater and HVAC industries worldwide. The valve was designed with an understanding that process industries need products that provide exceptional performance while reducing the total cost of ownership.

TEKO butterfly valves have been rigorously tested to meet industry performance requirements. A fully supported one-piece shaft and heavy-duty bearings ensure perfect alignment of seat and disc leading to long life and trouble-free performance. We TEKO offers a wide variety of seat options including PTFE seat, reinforced PTFE seat, flexible metal seat and a dual seat.





SPECIFICATIONS



Size Range: DN50 - DN1500 (2" - 60")
Pressure Rating: Class 150Lb, 300Lb, 600Lb
Temperature Rating: to 370℃, on application to 540℃
Body Configuration: Wafer, Lugged, Double Flange
Body Seat: SS316
Body Materials: Carbon Steel, SS 316
Disc Materials: CF8/CF8M
Flange Standards: ANSI150, PN6/10/16, JIS 5K/10K/16K/20K
Operation: Manual, Electric, Pneumatic

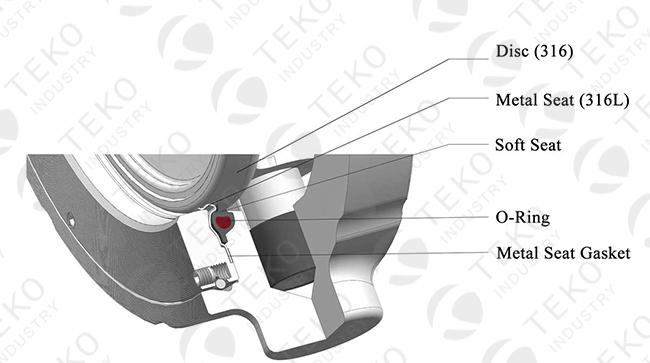

ABOUT THE SEAT DESIGN



Fire Safe High Performance Butterfly Valves , Manual Double Offset Butterfly Valve



Soft seated: Bi-directional seat with encapsulated elastomeric o-ring for resiliency. Common sea materials include PTFE, RPTFE and UHMWPE.



Metal Seated: TEKO metal seat with metal back-up ring to accomplished by the line contact between a spherical surface and conical surface.



Fire safe seat: Double seat design, bi-directional soft sea design for zero-leakage in normal operation and a metal-to-metal seal after fire, meeting or exceeding industry ”fire-safe” requirements.
