4 Inch High Performance Butterfly Valves Pneumatic Actuated Modulating With YTC Positioner

China 4 Inch High Performance Butterfly Valves Pneumatic Actuated Modulating With YTC Positioner supplier
4 Inch High Performance Butterfly Valves Pneumatic Actuated Modulating With YTC Positioner supplier 4 Inch High Performance Butterfly Valves Pneumatic Actuated Modulating With YTC Positioner supplier

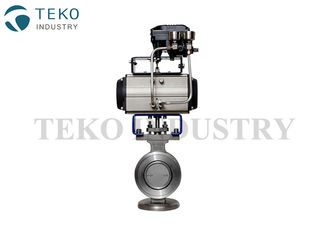

Large Image :  4 Inch High Performance Butterfly Valves Pneumatic Actuated Modulating With YTC Positioner

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: D672F, D372H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Mounting Pad: ISO5211 End: Wafer, Lug, Flange
Manufacture Standard: API 609 Seat Material: Soft Seat, Metal Seated
Service: Oil Chemical FCL: Provided Upon Requsted

Pneumatic Actuated Modulating High Performance Butterfly Valve With YTC Positioner





Quick Info



Design Pneumatic Actuated Modulating High Performance Butterfly Valve
Body ASTM A 216 Gr. WCB / A 351 Gr. CF8 / CF8M
Size Range 2" to 60"
Shaft 17-4PH
Disc. ASTM A 351 Gr. CF8 / CF8M
Seat RPTFE / Metal to Metal
Temprature 230°C (Soft Seating), 600°C (Metal to Metal)
Pressure rating PN 10 / PN 16 / PN 25, Class150Lb
End Connection As Per ANSI B 16.5 Class 150,Class 300, Class 600





Features



Sizes 2″ to 60″

Classes 150 to 900#

Soft, Fire safe and Metal seated designs available

Wafer, Lugged and Double Flanged Styles

Wide range of materials

Blowout Proof Stem

Standard ISO 5211 Mounting Pad

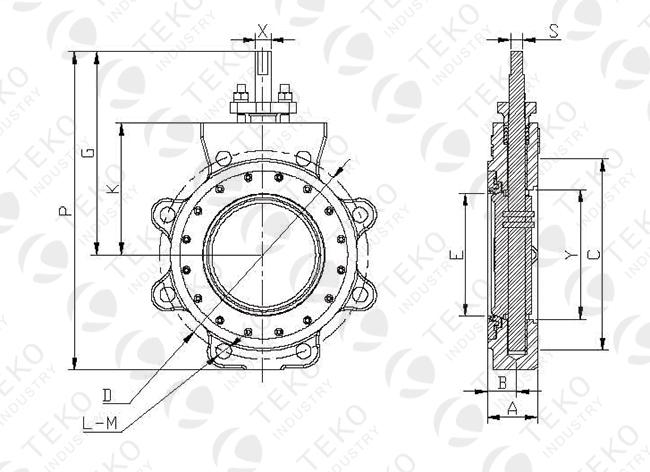

Drawing & Dimensions



4 Inch High Performance Butterfly Valves Pneumatic Actuated Modulating With YTC Positioner





Size A B C D E F G H K L1 L2 M P S X Y Weigh
80 49 27 132 168 73 207 203 279 121 3/4-10 M20 8 316 11 16 74 9
100 54 30 157 200 95 238 216 279 133 3/4-10 M20 8 341 16 16 97 13
150 59 34 216 270 142 308 257 599 175 3/4-10 M20 12 413 21 22 146 24
200 73 40 270 330 188 381 306 599 213 7/8-6 M22 12 495 24 29 194 42
250 83 44 324 387 236 445 353 599 254 1-8 M27 16 592 29 35 243 73
300 92 50 381 451 282 514 389 - 283 1-1/8-8+ M30 16 675 F14 41 289 100





FAQ



1. What’s your products range?
-Forging and casting
-Duplex, Super Duplex, Inconel, Monel, Hastelloy, Aluminium Bronze.
-Ball valve,Butterfly valve,Gate valve,Globe valve,Check valve, Strainer & Other valves.



2. Do you have stock products to sell?

-Yes, we have normal type with normal material in stock



3. What information do you need if I want to inquiry?

-The valve type, size, pressure and material.
-The liquid,connection and operation also need if you can offer.





4. Can I get some samples?
A:Yes.Sample fee will be for buyers account





5. Could I use my own LOGO or design on goods?
-Yes. Customized logo and design on mass production are available.





6. How many days the products will be ready?
-Generally,3 to 4 weeks,depends on the quantity.





7. May I visit your factory?

-Sure,welcome any time.We can also pick you up at airport and station.
