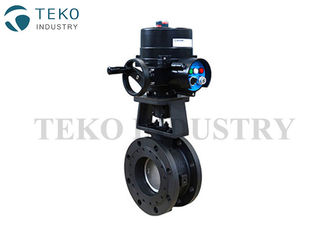

Electric Actuated Regulating API609 Butterfly Valve Fire Safe Seat With 4-20mA Positioner

China Electric Actuated Regulating API609 Butterfly Valve Fire Safe Seat With 4-20mA Positioner supplier
Electric Actuated Regulating API609 Butterfly Valve Fire Safe Seat With 4-20mA Positioner supplier Electric Actuated Regulating API609 Butterfly Valve Fire Safe Seat With 4-20mA Positioner supplier

Large Image :  Electric Actuated Regulating API609 Butterfly Valve Fire Safe Seat With 4-20mA Positioner

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: D972F, D972H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Features: Bi-direcitonal Seal Operation: Motorized
Postioner: 4-20mA Body Material: WCB, Stainless Steel
Seat Material: RPTFE, Metal Seated, Fire Safe Design: API 609

API 609 Electric Actuated Regulating High Performance Buttefly Valve With 4-20mA Positioner





Product Range



Size/ASME Class: 2" - 60", Class 150-900Lb

End Connection: Wafer and Lug



Operators Available



10 Position Lever Handle, Gear Operators, Pneumatic and Electric Actuators



Specifications



Valve Sizes 2 " through 60"

Flanged End Connections per ANSI B16.5.

Valve face to face dimension per MSS-SP-68.

Valve bodies are cast high quality steel, with standard availability in ASTM-A-216 WCB CS and ASTM A-351 CF8M SS.

Body wall thickness meets ASME/ANSI B16.34 and complies with quality standard for steel casting MSS-SP-55.

High performance valve design meets the requirements of MSS-SP-68 for double offset design.

Valve pressure tests meet MSS-SP-61, API 598 and ANSI B16.104 valve inspection and testing.

Tagging meets the requirements of MSS-SP-25 and API 609B.

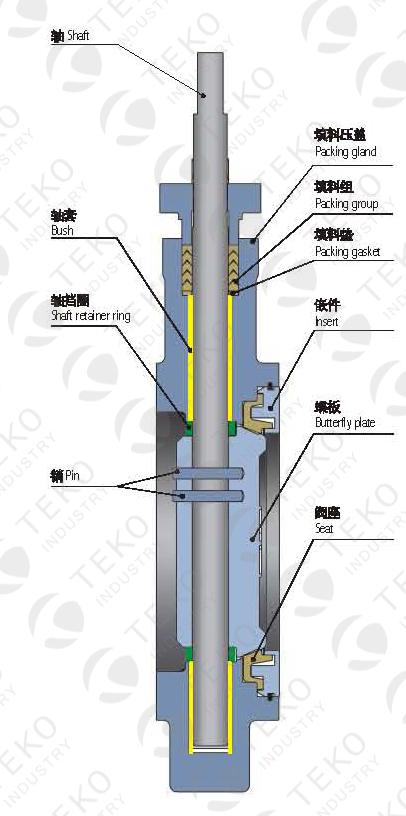

Material List

Electric Actuated Regulating API609 Butterfly Valve Fire Safe Seat With 4-20mA Positioner



No. Part Name Carbon Steel Stainless Steel
1 Body ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
2 Disc ASTM A351 CF8 ASTM A351 CF8 ASTM A351 CF8M
3 Insert Carbon Steel 316 316
4 Seat RPTFE or PPL
5 Shaft 17-4PH 17-4PH 17-4PH
6 Packing Gland ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
7 Packing RPTFE
8 Packing Pad 316 316 316
9 Sleeve 316+RPTFE
10 Shaft colar 316 316 316
11 Pin 17-4PH 17-4PH 17-4PH
12 Bolt, nut Carbon Steel SS SS
