High Cycle Worm Gear Metal Seated Butterfly Valve Minimal Wear With Zero Leakage

China High Cycle Worm Gear Metal Seated Butterfly Valve Minimal Wear With Zero Leakage supplier
High Cycle Worm Gear Metal Seated Butterfly Valve Minimal Wear With Zero Leakage supplier High Cycle Worm Gear Metal Seated Butterfly Valve Minimal Wear With Zero Leakage supplier

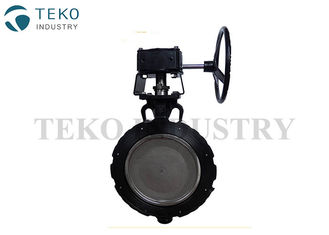

Large Image :  High Cycle Worm Gear Metal Seated Butterfly Valve Minimal Wear With Zero Leakage

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: D72F, D72H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Features: Bi-direcitonal Seal Pressure Rating: Class 150-900Lb
Firesafe: Available Body Material: WCB, Stainless Steel
Size: 2"~60" Design: API 609

High Cycle Long Lifetime Worm Gear High Performance Butterfly Valve With Zero Leakage





Product Overview



TEKO two offset high performance butterfly valve are designed in accordance with API609 with advantages of bi-directional, light weight, cost-effective and low operation torque. Wide working temperature range covers -196℃~816 ℃, ideal for most various industry flow control system





Features and Benefits



* Double offset design to provide superior sealing with minimal seat contact and wear

* Machined, tapered seat multiple sealing edges.

* Single piece shaft and disc designed for maximum strength and Cv.

* Internally cast disc position stop to prevent disc over travel while maintaining optimum disc/seat contact.

* Stem is centered in the adjustable stem packing by oversized bearings eliminating stem leakage and fugitive emissions.

* Disc spacers to center disc in seat to eliminate seat distortion.

* Blow out proof stem to prevent injury and product loss.

* Combination mechanical and pressure energized seal design for repeatable and reliable sealing performance and extended cycle life.

* Seat retaining ring designed for dead end service (lug style) and provides easy removal for seat replacement.

* Stem/disc connection allows minimal loss motion and high strength.





Seat Material and ratings



PTFE Class VI, Bubble Tight
RTFE Class VI, Bubble Tight
SS 316 Class V
INCONEL Class V
PTFE+SS 316

Class VI, Bubble Tight

Class V w/Preferred Flow After Fire

RTFE+SS 316

Class VI, Bubble Tight

Class V w/Preferred Flow After Fire

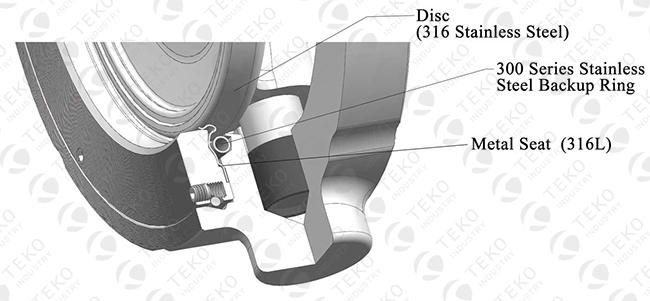

Metal Seated Design



High Cycle Worm Gear Metal Seated Butterfly Valve Minimal Wear With Zero Leakage
