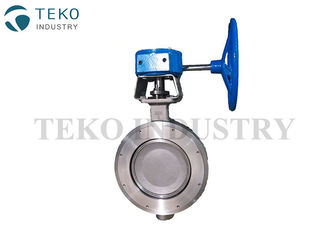

Carbon Steel High Performance Butterfly Valves , Flanged Butterfly Valve With Bubble Tight Shutoff

China Carbon Steel High Performance Butterfly Valves , Flanged Butterfly Valve With Bubble Tight Shutoff supplier
Carbon Steel High Performance Butterfly Valves , Flanged Butterfly Valve With Bubble Tight Shutoff supplier Carbon Steel High Performance Butterfly Valves , Flanged Butterfly Valve With Bubble Tight Shutoff supplier

Large Image :  Carbon Steel High Performance Butterfly Valves , Flanged Butterfly Valve With Bubble Tight Shutoff

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: D72F, D72H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Features: Two Offset Pressure Rating: Class 150-900Lb
Firesafe: Available End Connection: Lug, Wafer, Flange
Size: 2"~60" Design: API 609

Two Offset Design Carbon Steel Body High Performance Butterfly Valve With Bubble Tight Shutoff





TEKO High performance butterfly valve, bi-directional seal design, API 609 fire safe available, Lug & Wafer end, Carbon steel / Stainless Steel Body, low torque and long life span up to 1 million operations.



With the ISO 5211 top flange, it can be equipped with pneumatic or electric actuators, or worm gear on site. No need to disassemble from the pipeline.





Features



Class IV shutoff, bubble tight

Bi-directional interference and pressure assisted seal. It provides max seal at high, medium and low pressures.

High Strength 17-4PH Stem

Quick release disc design

Disc taper pins

Integrally cast disc positions stop





Available Actuators



Electric

Pneumatic (Spring Return)

Pneumatic (double acting)

Lever Operation

Worm Gear Operation

Gear handwheel with Chain Wheel

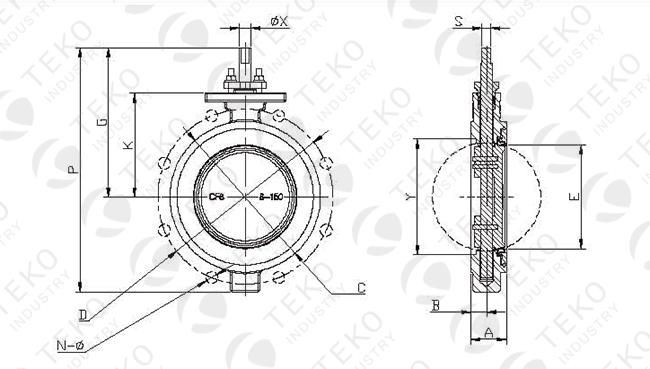

Dimensions



Carbon Steel High Performance Butterfly Valves , Flanged Butterfly Valve With Bubble Tight Shutoff





Size A B C E G H K P S X Y Weight
(KGs)
50 43.3 23.3 96 38 124.3 279 80 186.3 7 14 50 3.2
65 49 27 119 59 194 279 111 275 11.2 14.8 48 5
80 49 27 132 73 203 279 121 316 11.2 14.8 74 6
100 54 30 157 95 216 279 133 341 11.2 14.8 97 8
125 64 30 186 111 217 279 135 362 11.2 14.8 111 12
150 57 33 216 142 235 279 152 378 14 18 146 13
200 64 36 270 188 270 559 187 441 15.9 21.9 194 20
250 71 41 324 236 329 559 232 530.6 20.6 28 243 35
300 81 48 381 282 357 559 260 595.5 23.8 33.3 289 51
