Epoxy Coating Industrial Valves , Full Closed Body Actuated Slurry Pinch Valve

China Epoxy Coating Industrial Valves , Full Closed Body Actuated Slurry Pinch Valve supplier
Epoxy Coating Industrial Valves , Full Closed Body Actuated Slurry Pinch Valve supplier Epoxy Coating Industrial Valves , Full Closed Body Actuated Slurry Pinch Valve supplier

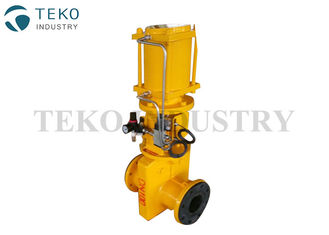

Large Image :  Epoxy Coating Industrial Valves , Full Closed Body Actuated Slurry Pinch Valve

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: GJ41X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Power: Pneumatic, Electric Actuated Max. Working Pressure: 4 Bar
Port Size: DN25~DN700 End Connection: ANSI B16.5
Service: Corrosive, Abrasive Liquid Surface Treatment: Epoxy Coating

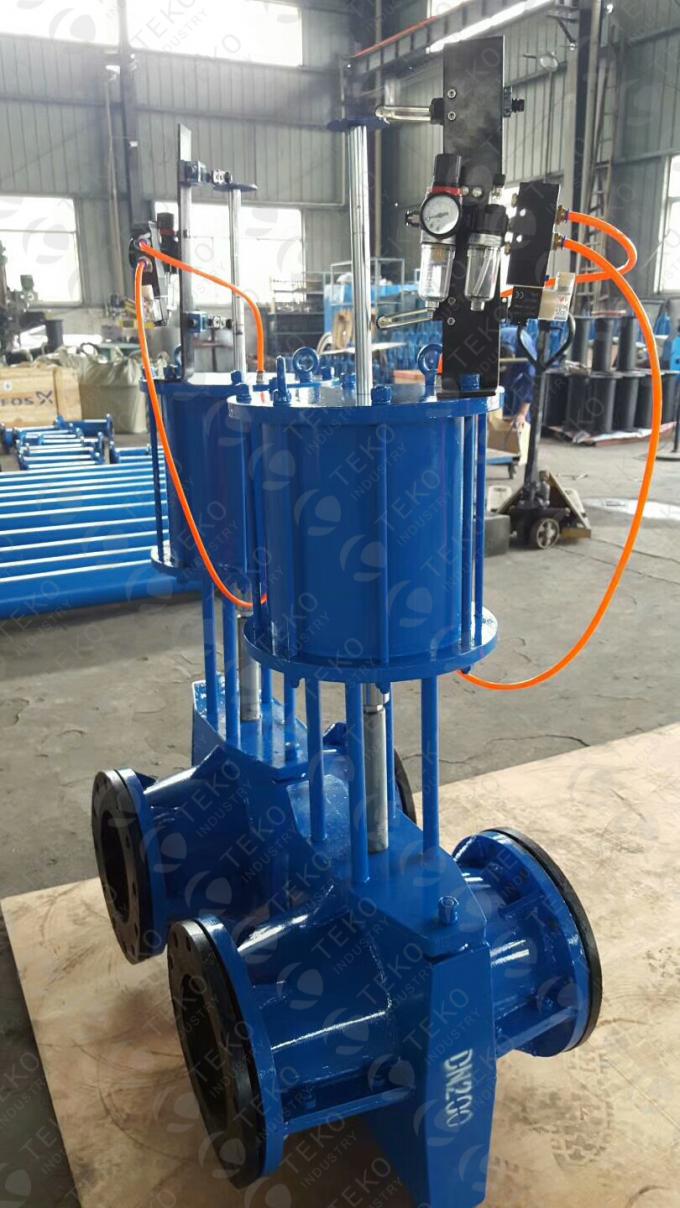

Full Closed Body Actuated Pinch Industrial Valves For Slurry Applications



PRODUCT REVIEW



TEKO industrial pinch valves are completely closed, pneumatic actuated control valve. With advantage of reliability and maintenance free design, it is suitable for tough slurries, abrasives, corrosive chemical applications, effluent unit and so on. With the 4-20mA positioner, it can be used as a throttling control valve.





DESIGN FEATURES



Tight shut-off even on trapped solids

Streamlined centerline closure

Built-in over-pinch protection

Heavy duty design, high recycle life

Positive opening tags for negative pressure

Full, flat-faced reinforced rubber flanges, eliminates need for gaskets

Seatless and bonnetless design, only sleeve the wetted part.

Standard maintenance-free double action pneumatic actuator

Available with pneumatic or electric actuators and pneumatic or electro-pneumatic position controllers.

A wide range of elastomers are available to suit most service conditions





SPECIFICATIONS



Size Range 1" (25mm) to 28" (700mm)
Temperature -10 to 120 degree C
Max. Working Pressure Up to 60psi (4bar)
Standard Face-to-Face Mill Standard
Flange Drilling ANSI 150#, DIN, JIS, AS
Actuation Compressed Air
Tube Material NR, PGR, EPDM, NBR, IIR, CR, FPM, CSM (View Chart)
In-Line Tube Change Yes
Body Type Sealed
Body Material Carbon Steel, Aluminum, Ductile Iron
