OS / Y Bolted Bonnet Forged Steel Valves , Regular Port Forged Steel Gate Valve

China OS / Y Bolted Bonnet Forged Steel Valves , Regular Port Forged Steel Gate Valve supplier

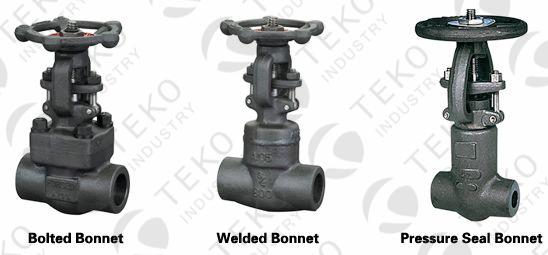

Large Image :  OS / Y Bolted Bonnet Forged Steel Valves , Regular Port Forged Steel Gate Valve

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Z61Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Size: 1/8" To 2" Service: Water, Gas, Steam, Oil
Port: Regular Port, Full Port End Conection: Screwed,Weld
Operatioin: Handwheel, Electric Trim Number: As Request

OS & Y Bolted Bonnet Regular Port Forged Steel Gate Valve For High Pressure Service





Design Features



Compact and sturdy design for high pressure-temperature service.

Solid Wedge Ensure low friction and long service life

Seat welded to the body for reliable seal performance

Full guided wedge reduces wear on seating surfaces.

2 Pieces stem drive.





Options



Special design available with double packing, leak-off connection, live-loading and a packing blowout for easy removal of old packing.

Bolted bonnet gate valves for alkylation service

Parallel Slide gate valves

API 603 NPS 1/2” to 11/2”, for ASME classes 150, 300, and 600.





Standard Materials


Parts Material
Body A105
Bonnet A05
Gasket Gr 304
Packing Flange A105
Seat Gr410
Wedge A105
Stem Gr410
Stem nut Gr416
Yoke Bushing Steel
Gland A105
Packing Graphite
Gland bolt Gr B6
Gland nut Gr 2H
Cap Screw Gr B7
Handwhweel Malleable Iron
Handwheel Nut Steel
Handwheel Lockwasher Steel
