Design: API 602 Bonnet: Pressure Seal
Feature: High Pressure Service Pressure Rating: 800Lb-2500Lb
Trim Number: As Per API 600 Port Size: 3/8" To 2"

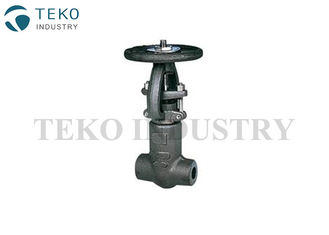

Pressure Seal Bonnet A105N Globe Forged Steel Valve WIth NACE MR0175 Material





Design Features

  • Stellite faced seat and disc seat surfaces as standard trim, and 13% chrome stem (API trim 5). Other trims available on request.
  • Valves are full port design per ASME B16.34
  • Wall thickness per heavy wall API 600 requirements.
  • Seat faces lapped for smooth finish and superior sealing.
  • Swivel disc for optimal seating and longer seat life.
  • Each valve is shell, seat and backseat pressure tested per industry standard API 598.
  • Gland is two piece gland / gland flange design for optimal alignment and uniform packing compression.
  • Weld end valves are B16.10 short pattern design.
  • Each valve has a unique certification number that is traceable to the valve certification sheet which includes MTR data, pressure test, inspection result and certificate of conformance.



Specifications


item Applicable Standard
Wall Thickness API 600
pressure-temperature ratings ASME B16.34
Valve Design API 602
End to end ASME B16.10
Butt weld desing ASME B16.25
Material ASTM





Material List



NO.. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Seat A276 420 A276 304 A276 304(L) A276 316(L)
3 Wedge A276 430&410 A182 F304 A182 F304(L) A182 F316(L)
4 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
5 Pressure Seat A105 A182 F304 A182 F304(L) F316(L)
6 Pressure Ring A276 304L A276 316L
7 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
8 Gland Eyebolt A193 B7 A193 B16 A193 B8(M)
9 Pin A276 420 A182 F304(L)
10 Stem Packing Flexible Graphite PTFE
11 P.S.Lock Nut A194 2H A194 4 A194 8 A194 8M
12 Gland A276 F420 A182 F304
13 Gland Flange A216 WCB A351 CF8
14 Nut A194 2H A194 4 A194 8 A194 8M
15 Yoke Nut A276-410
16 Retaining Nut A194 2H A194 4 A194 8 A194 8M
17 Handwheel A197
18 H.W.Lock Nut A194 2H A194 4 A194 8 A194 8M
19 Oil Cup Brass
Suitable Medium W.O.G.etc W.O.G.etc HNO3,CH3OOH etc
Suitable Temperature -29~425 -29~550 -29~180

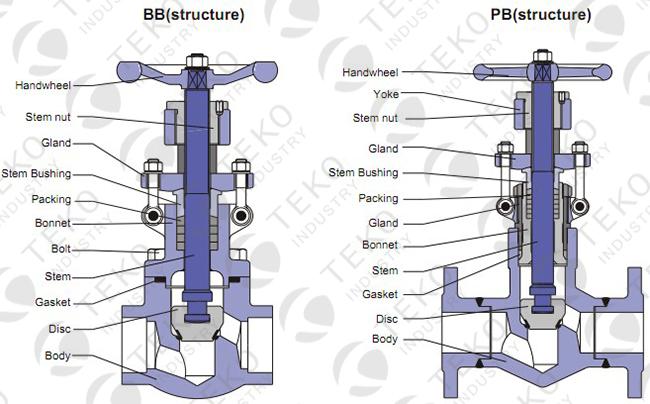

Bolted Bonnet VS Bolted Bonnet
