Product Details:
Payment & Shipping Terms:
|
| Design: | API 602 | End: | Socket Weld Threaded |
|---|---|---|---|
| Feature: | Welded Bonnet | Structure: | Gate |
| Pressure Rating: | 800Lb, 138bar @38℃ | Trim Number: | Upon Request |
| High Light: | forged steel gate valve,forged steel check valve |
||

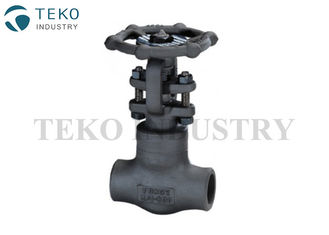

Conventional Bore OS & Y Gate Forged Steel Valve With Welded Bonnet
Outside Stem & Yoke, Forged Steel Bolted & Welded Bonnet Gate Valve; Screwed, SW & BW ends, With Conventional Port, Sizing 1/4” thru 2”
Trime Confugiration
| Body and Bonnet Material | Trim Material |
| A105 | API Trim 8 |
| A182 F11 | API Trim 8 |
| A182 F22 | API Trim 8 |
| A182 F5 | API Trim 8 |
| A182 F9 | API Trim 8 |
| A182 F316 | API Trim 12 |
| A182 F316L | API Trim 12 |
| A350 LF2 | API Trim 8 |

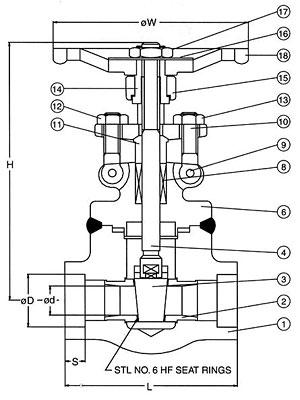

| 1. | Body |
| 2. | Seat Ring |
| 3. | Disc |
| 4. | Stem |
| 5. | Gasket |
| 6. | Bonnet |
| 7. | Bonnet Bolt |
| 8. | Gland Packing |
| 9. | Eye Bolt Pin |
| 10. | Eye Bolt |
| 11. | Gland |
| 12. | Gland Flange |
| 13. | Eye Bolt Nut |
| 14. | Sleeve |
| 15. | Sleeve Washer |
| 16. | Name Plate |
| 17. | Lock Nut |
| 18. | Hand Wheel |
