Product Details:
Payment & Shipping Terms:
|
| Test: | API 598 | End: | Thread, Weld |
|---|---|---|---|
| Feature: | Y Shape | Structure: | Globe |
| Material: | Forged Steel | Pressure Rating: | 800Lb, 138bar @38℃ |
| High Light: | forged steel gate valve,forged steel globe valve |
||

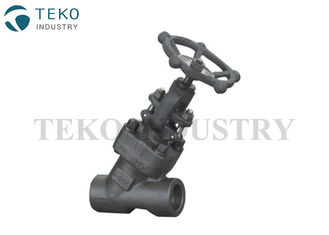

API602 Full Bore Y Patttern Globe Forged Steel Valves For Petroleum Industry
About TEKO
With 8 years of experiences in valve industry, TEKO combines innovative technology and excellent service to provide intelligent solutions. This approach means that our employees are close to customers on all aspects including pre-ordering, purchasing, installation, maintenance and so on. With the theme of customer first, we try our best to satisfy customer’s need and received a good reputation.
Features:
· Outside Screw and Yoke (OS&Y)
· Two piece self aligning packing gland
· Captured Graphite Spiral wound gasket
· Integral backseat
· Socket weld ends to ASMS B6.11
· Threaded Ends (NPT) to ANSI/ASME B1.20.1
· NACE MR-01-75

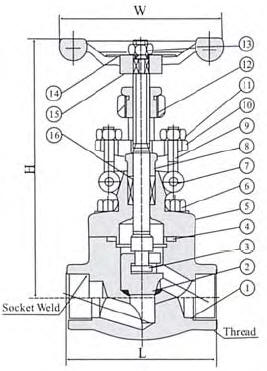

Standard Material Specifications
| Item | Parts | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | Corrugated SS+ graphite | SS+ PTFE | ||
| 5 | Bonnet | A105 | A276 304 | A276 304(L) | A276 316(L) |
| 6 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Pin | A276 420 | A182 304(L) | ||
| 8 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | |
| 9 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 10 | Gland Flange | A216 WCB | A351 CF8 | ||
| 11 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 12 | Yoke Nut | A276 410 | |||
| 13 | H. W. Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 14 | Nameplate | SS | |||
| 15 | Hand wheel | A197 | |||
| 16 | Stem Packing | Flexible Graphite | PTFE | ||
| Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3.CH3COOH etc | ||
| Suitable Temperature | -29°C~425°C | -29°C~550°C | -29°C~180°C | ||
Note: Other materials are available upon request. CS=Carbon Steel; AS=Alloy Steel; SS=Stainless Steel.
