Staines Steel PTFE Lined Valves Flange End Y Type Bolted Bonnet With PTFE Mesh

China Staines Steel PTFE Lined Valves Flange End Y Type Bolted Bonnet With PTFE Mesh supplier

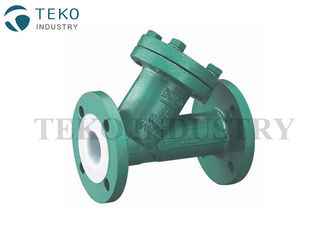

Large Image :  Staines Steel PTFE Lined Valves Flange End Y Type Bolted Bonnet With PTFE Mesh

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: GL41F4

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per year
Contact Now
Detailed Product Description
Mesh Material: PTFE Applications: Aggressive Or Toxic Liquid
Structure: Filter Body Material: WCB, Stainless Steel
Bonnet: Bolted Bonnet Standard Or Non Standard: Standard

Staines Steel Flange End Y Type PTFE Lined Stainer Valves With PTFE Mesh





The TEKO Y type strainer is used to prevent solids flowing through a pipe line. Like all the products manufactured by TEKO, the strainer has a PFA lined carbon steel body. The PFA lining and PTFE mesh and basket ensure long life in the most arduous conditions.





Dimensions



Staines Steel PTFE Lined Valves Flange End Y Type Bolted Bonnet With PTFE Mesh



Nominal Size Face -Face A CL to end of basket B
Inches mm mm mm
1" 25 165 125
1.1/2" 40 203 150
2" 50 229 165
3" 80 318 280
4" 100 368 305
6" 150 470 409
8" 200 600 595



The Y pattern design is to give minimum pressure loss by using a large area PTFE filter basket. The basket is manufactured from 2 off interlocking PTFE cylinders with an ETFE filter screen sandwiched between them. The standard screen size is 300µ but we are able to supply various sized mesh filter screens to suit your application.



The filter basket can be removed for cleaning or changing without removing the strainer from the pipe line. The filter basket assembly is supplied with a PTFE drain plug to drain fluid prior to basket removal. We can supply a drain valve to replace this to allow easy draining if required.
