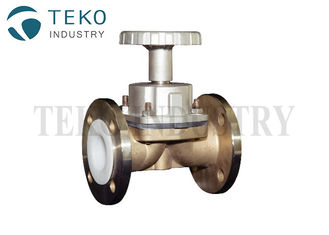

Reduced Bore A351 1/2" PTFE Lined Valves For Chemicals

Reduced Bore A351 1/2" PTFE Lined Valves For Chemicals
Reduced Bore A351 1/2" PTFE Lined Valves For Chemicals

Large Image :  Reduced Bore A351 1/2" PTFE Lined Valves For Chemicals

Product Details:
Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: G41PFA
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per year
Contact Now
Detailed Product Description
Dipaphragm Material: PTFE, PFA, EPDM Applications: Aggressive Or Toxic Liquid
Structure: Throttling Design Standard: GB 12239, B16.10
Operation: Manual, Electric, Pneumatifc Body Material: A351 CF8, CF8M, WCB
High Light:

1/2" PTFE Lined Valves

,

A351 PTFE Lined Valves

,

Weir Type Diaphragm Valves

Reduced Bore PFA Lined Weir Type Diaphragm Valves For Chemicals



Standard ANSI 150LB PN 16 JIS 10K
Size 1/2"~4" DN15~DN100 15A~100A
Body ASTM A351-CF8+PFA ASTM A216 Gr.WCB+PFA 1.4308+PFA 1.0619+PFA SCS13A+PFA SCW410 + PFA
Bonnet ASTM A351-CF8 ASTM A216 Gr.WCB 1.4308 1.0619 SCS13A SCW410
Stem SS 304 SS 304 SS 304
Hand wheel ASTM A351-CF8 1.0619 SCW410
Diaphragm PTFE PTFE PTFE





Description



  • PFA (Fluoropolymer) Liner introduction
  • Available dimensions: 1/2" to 4" / 15A~100A
  • Operating temperature: -30oC to +120oC
  • Stem machined of 316 material
  • Body, bonnet and compressor of precision casting material
  • PFA lining fluoroplastics
  • Stem protected by NBR/ VITON O-ring
  • 15KV spark testing
  • PFA diaphragm combined with high strength EPDM diaphragm

Features

  • Available for working in occasions of corrosive gas
  • Investment casting stainless steel lined with PFA (perfluoroalkoxy) with the transfer molding method to reach long-term service life.
  • Simple design of stem facilities the maintenance.

Applications



PFA lined diaphragm valves apply for high corrosive fluid, as following applications,

  • Chemical plant
  • Rare earth
  • Pesticide
  • Pharmaceutical Manufacturing
  • Paper making industry
  • Corrosive Petrochemical
  • Dyeing and finishing plant
  • Solar panel industry
  • Petrochemical industry
  • Pharmaceutical industry



Dimensions



SIZE ØA H H I J
in mm   PD11 PD51
1/2" 15 15 108 114 100 100
3/4" 20 20 146 123 100 100
1" 25 25 146 133 140 100
1-1/2" 40 40 175 165 140 140
2" 50 50 200 196 150 140
2-1/2" 65 65 226 222 226 140
3" 80 80 260 260 240 190
4" 100 100 327 313 320 230
