Product Details:
Payment & Shipping Terms:
|
End Connection: | Flange | Applications: | Aggressive Or Toxic Liquid |
---|---|---|---|
Structure: | Plug | Design Standard: | GB 12240 |
Operation: | Manual, Electric, Pneumatifc | Body Material: | WCB Or Stainless Steel |
High Light: | ptfe lined ball valve,ptfe lined butterfly valve |

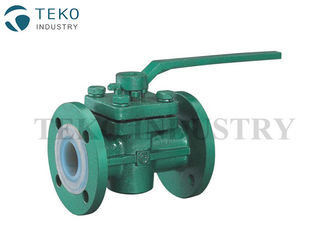

SLEEVE TYPE TWO WAY FLUORINE FULL LINED PTFE LINED PLUG VALE
ABOUT PFA
PFA’s temperature arranges is up to 180 degree. And it is easy to module and produced.
SPECIFICATIONS

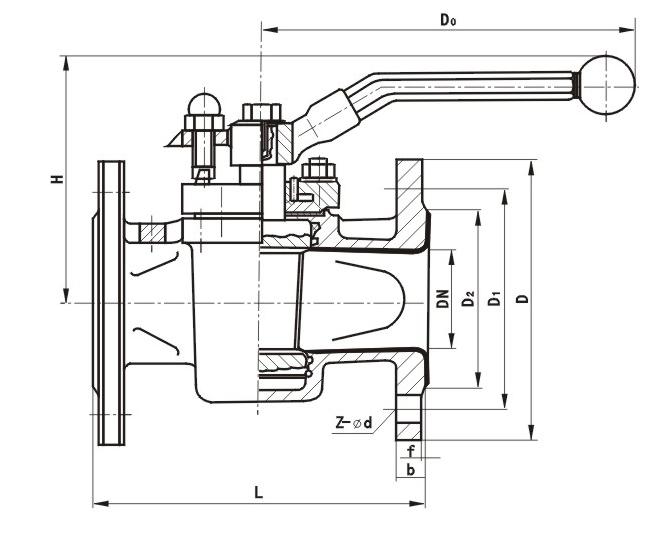

PTFE LINING PLUG VALVE | |
BODY | CS ASTMA 216 GE WCB/ASTMA-351-CF8/ASTMA 351 –CF8M+PFA/FEP Liner |
PLUG | CS ASTMA 216 GE WCB/ASTMA-351-CF8/ASTMA 351 –CF8M+PFA/FEP Liner |
WEDGE RING | PTFE |
DIAPHRAGM | PTFE |
DIAPHRAGM | SS304 |
THRUST COLLAR | S.S./C.S. |
TOP CAP | CS ASTMA 216 GE WCB/ASTMA-351-CF8/ASTMA 351 –CF8M+PFA/FEP Liner |
TOP CAP CONNECTOR BLOT | CARBON STEEL B7/SS |
TOP CAP NUTS | CARBON STEEL 2H/SS |
ADJUSTER | S.S./C.S. |
ADJUSTER FASTENERS | CARBON STEEL B7/S.S. |
STOP COLLAR | C.S./SS |
HANDLE HUB | S.S./C.S. |
OPERATION : | CS/SS HANDLE/MANUALLY GEAR OPERATION/ELECTRIC OR PNEUMATIC OPERATION |
Sizes: | ½"(15 NB) TO 10"(250 NB) |
Pressure Class | ANSI CLASS 150/ PN 10/ PN 16 |
Working Temperature | -30 degree to 180 degree |
Maximum working Pressure | 275 psi |
Flanged Drilled | Flange ASME B16.5 CLASS 150 RF/ DIN STANDARD/PN 10/PN 16/ PN 40 |
HYDRAULIC TEST PRESSURE | AS PER SUITABLE CLASS 150#, PN 10, PN 16, PN 40 ETC. |
Spark Test(Pinhole Test) | 15~20 KV DC |
