Wafer End PTFE Lined Valves , Chemical Short Pattern Swing Type 2 Inch Valve

China Wafer End PTFE Lined Valves , Chemical Short Pattern Swing Type 2 Inch Valve supplier

Large Image :  Wafer End PTFE Lined Valves , Chemical Short Pattern Swing Type 2 Inch Valve

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: H74F46

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per year
Contact Now
Detailed Product Description
End Connection: Wafer Installaiton: Horizontal
Applications: Aggressive Or Toxic Liquid Liner: PTFE, FEP, PFA
Structure: Swing Type Design Standard: HG/T3704

Wafer End Short Pattern Swing Type PTFE Lined Valve For Chemical Process



Features

  1. Short Patter Length, save the installation space for the end-user
  2. Fully encapsulated one-piece disc/hinge assembly
  3. Robust design, durable, high cycle performance
  4. DN 50 to DN500 are available
  5. Body would be stainless steel+ MIN. 3mm PFA/PTFE/PVDF/FEP liners
  6. 100% spark test for all the wetted parts.
  7. Virgin fluorine Plastic



Working Temperature of different liner



Material Temperature Range (℃)
PFA -29 to 180
FEP -29 to 120
PVDF -20 to 100
PTFE -29 to 200

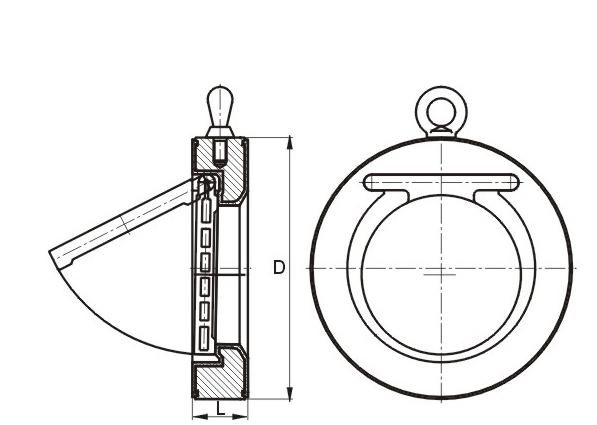

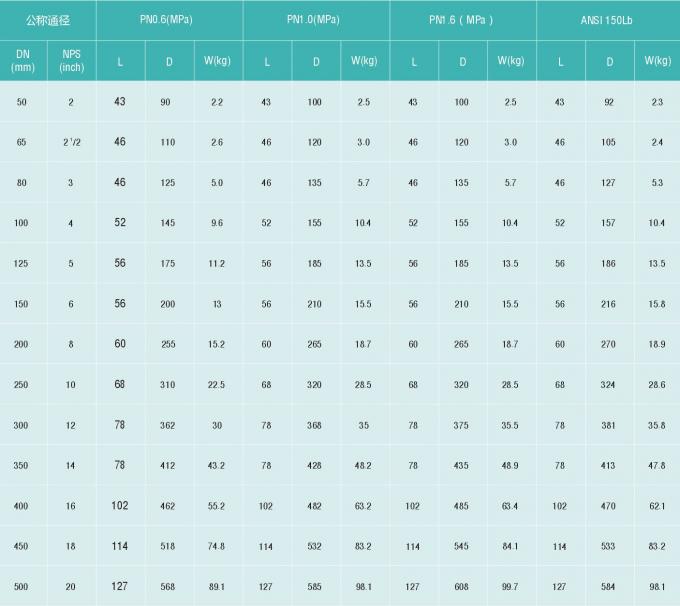

Dimensions



Wafer End PTFE Lined Valves , Chemical Short Pattern Swing Type 2 Inch Valve



Wafer End PTFE Lined Valves , Chemical Short Pattern Swing Type 2 Inch Valve
