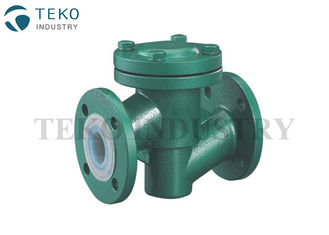

Acid Resistant PTFE Lined Check Valves Vertical Lift Non Return Low Pressure Loss

China Acid Resistant PTFE Lined Check Valves Vertical Lift Non Return Low Pressure Loss supplier

Large Image :  Acid Resistant PTFE Lined Check Valves Vertical Lift Non Return Low Pressure Loss

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: H41F46

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per year
Contact Now
Detailed Product Description
End Connection: Flange Model Number: H41F4
Feature: Low Pressure Loss Meida: Aggressive Or Toxic Liquid
Opeartion: Manual Or As Requested Liner: PTFE, FEP, PFA

Acid Resistant Vertical Lift Non Return Valve PTFE Lined Check Valve





Technical Data:



(1) Nominal Diameter DN(mm):DN15~DN300

(2) Nominal Pressure PN(MPa): PN10-PN16

(3) Testing Pressure PN(MPa): Shell: 1.5~2.4 Sealing: 1.1~1.76

(4) Suitable Mediums: Aggressive Liquid or gas

(5) Working Temperature: 0~+150°C

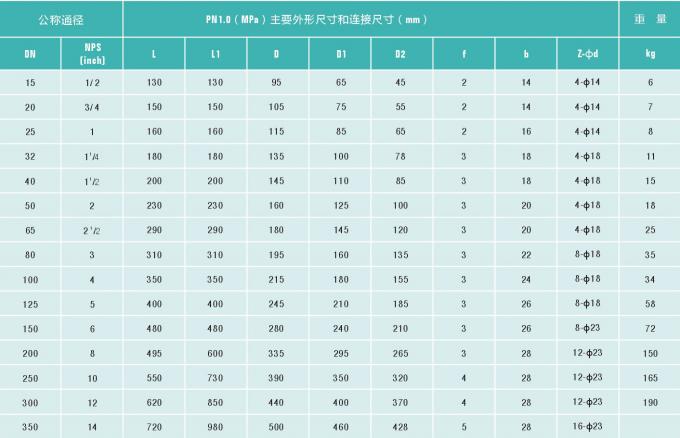

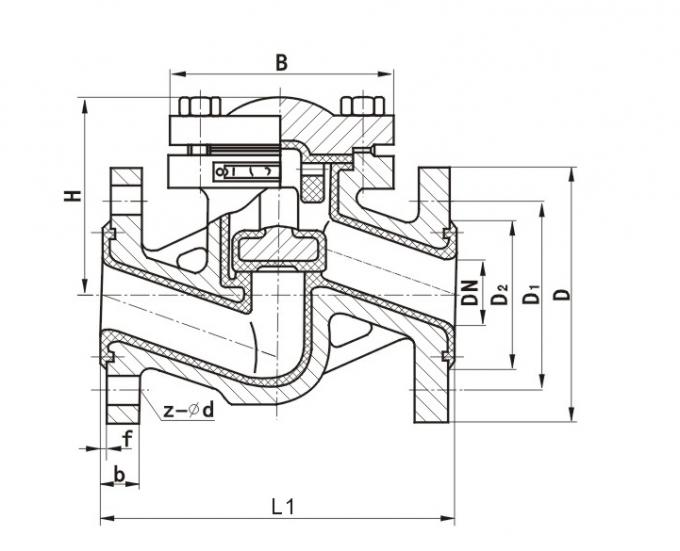

Part Material & Dimensions

Acid Resistant PTFE Lined Check Valves Vertical Lift Non Return Low Pressure Loss



Part Name Body Disc Shaft Lining Bolts/nuts
Material Carbon Steel Covered FEP Stainless Steel 304 FEP Steel



Acid Resistant PTFE Lined Check Valves Vertical Lift Non Return Low Pressure Loss
