Pure Virgin PTFE Lined Valves , Gear Operation Flanged End PTFE Lined Butterfly Valve

China Pure Virgin PTFE Lined Valves , Gear Operation Flanged End PTFE Lined Butterfly Valve supplier

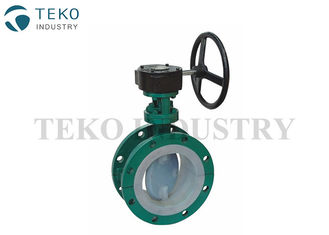

Large Image :  Pure Virgin PTFE Lined Valves , Gear Operation Flanged End PTFE Lined Butterfly Valve

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: D41F4

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per year
Contact Now
Detailed Product Description
Operation: Manual, Electric Design: MSS SP-67
Presssure: PN10/16, 150Lb Liner Material: PTFE, FEP, PFA Etc
Structure: Butterfly

Pure Virgin PTFE Lined Valves , Gear Operation Flanged End PTFE Lined Butterfly Valve





Descriptions



Using two pieces valve body structure, only the fluorine plastic lined disc and seat contact the liquid. It can used for all kinds of corrosive mediums excep “melting alkali metal” and Fluorine. It is widely used in chemical industry, soda factory, beverage and other industries.





Virgin PTFE Liner



In order to assure long-life span and superior quality, all PTFE parts (seats as well as encapsulated discs) are moulded from pure, virgin PTFE material. Virgin PTFE provides for an excellent chemical resistance and can be used with aggressive media. Typical characteristics of fluoropolymer resins include chemical inertness, exceptional dielectric properties, toughness and flexibility, low coefficient of friction, negligible water absorption and non-stick characteristics. All these properties provide increased protection against permeation of the line media. Further, low coefficient of friction reduces valve operation torque.





Material:

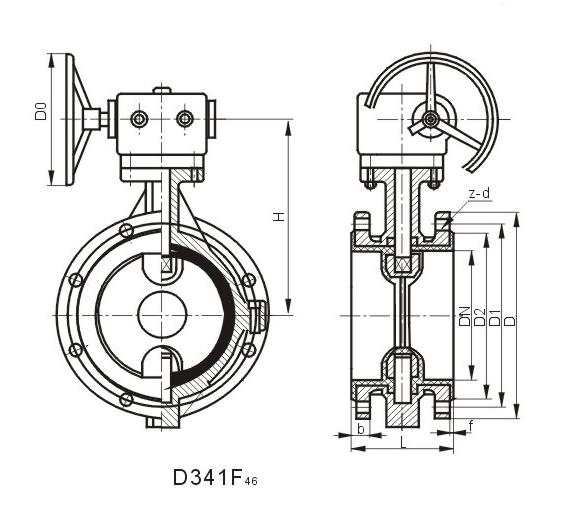

Pure Virgin PTFE Lined Valves , Gear Operation Flanged End PTFE Lined Butterfly Valve



Item Name Material
1 Liner PTFE
2 Disc with shaft Stainless steel, PTFE coated
3 Upper body part Ductile iron
4 Lower body part Ductile iron
5 Pressure element Stainless steel(AISI 420)
6 Seal capsule Stainless steel(AISI 420)
7 Energizer Silicone rubber / VITON
8 Ring Silicone rubber
9 Sliding gland ring Steel PTFE
10 Disc spring Carbon steel
11 Screw Stainless steel A4
12 Retaining ring Stainless steel A2
13 O-ring NBR
14 Lock Washer Stainless steel A2
