DN150 Class 150LB PTFE Lined Valves , Anti - Corrosion PTFE Lined Gate Valve For Chemicals

China DN150 Class 150LB PTFE Lined Valves , Anti - Corrosion PTFE Lined Gate Valve For Chemicals supplier

Large Image :  DN150 Class 150LB PTFE Lined Valves , Anti - Corrosion PTFE Lined Gate Valve For Chemicals

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Q41F46

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per year
Contact Now
Detailed Product Description
Liner: PTFE, FPA, Teflon End Connection: ANSI, DIN Flanged
Presssure: PN10/16, 150Lb Liner Thickness: As Standard
Structure: Gate

DN150 Class 150Lb Anti-corrosion PTFE Lined Gate Valve For Chemicals



Technical Data



Design Standard: API 600 / ASME B16.34
Face-to-face dimension: ASME B 16.10
Flange End: ASME B 16.5
Inspection & Testing: API 598





Features

  1. TEKO Gate valve can be divided into rising stem gate valve, which refers to the disc doing lift movement in straight line along with the valve stem, and non-rising stem gate valve which refers to the stem nut located in the disc, when the stem rotates, the disc doing lift movement in straight line.
  2. TEKO gate valve adopts new design structure, solving the inconvenient or jammed operation phenomenon caused by particles, fibers and medium deposition in the screw groove of common non-rising gate valve.
  3. Any direction installation is preferred.
  4. It can sustain any corrosive medium in addition to the molten alkali metals and fluorine elements. It is ideal products used in chlor-alkali, industrial in organic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceutical etc.
  5. Lining material: PTFE, PFA, FEP etc.
  6. Operation methods: manual as standard, and worm gear, electric, pneumatic and hydraulic actuator upon request
  7. TEKO Fluorine lined gate valves are available as per the needs of applications in additional sizes and other than standard materials.

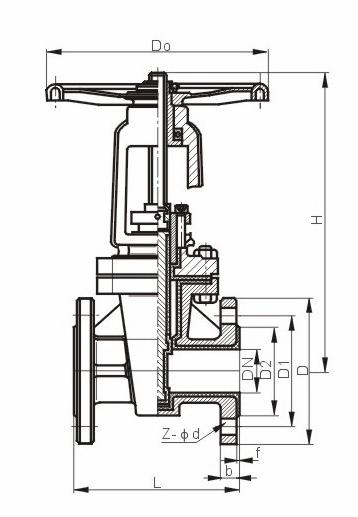

Material List:



DN150 Class 150LB PTFE Lined Valves , Anti - Corrosion PTFE Lined Gate Valve For Chemicals



NO. Parts Name Material
Cast Iron WCB CF8 CF8M
1 Body, Disc HT250 WCB CF8 CF8M
2 Stem 1Cr13 2Cr13 1Cr18Ni9 1Cr18Ni12Mo2Ti
3 Liner,Seat PTFE, PCTFE, FEP, PFA, PO
4 Packing PTFE
5 Handle WCC
