Coating Surface WCB Material Industrial Valves , Cast Steel Flanged Gate Valve For WOG

China Coating Surface WCB Material Industrial Valves , Cast Steel Flanged Gate Valve For WOG supplier

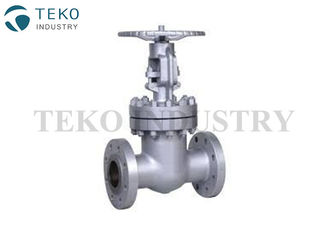

Large Image :  Coating Surface WCB Material Industrial Valves , Cast Steel Flanged Gate Valve For WOG

Product Details:

Place of Origin: China
Brand Name: TEKO
Certification: CE Certificate
Model Number: G41H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By polywooden cases
Delivery Time: 15 days after deposite
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 tons per month
Contact Now
Detailed Product Description
Bonnet: OS&Y Body Materials: Cast Steel- ASTM 150#
Stem: 2Cr13 Class: 150LB~2500Lb
End Connection: Flange, Butt Weld, Socket Weld Surface Finish: Painting Or Coating

WCB Material Flange End Industrial Valve For WOG Applications



What is Gate Valve?



The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar, so gate valves are often used when a straight-line flow of fluid and minimum restriction is desired. The gate faces can be parallel, but are most commonly wedge-shaped.



Applications

Petro-Chemical, oil and gas, mining, power and general services



Specifications

ANSI 150 Cast Steel, OS&Y- ASME B16.34 & API 600



Features

Flanged ANSI 150#

OS&Y

Bolted Bonnet

Full Bore

Solid Wedge



Construction

Body Materials: Cast Steel- ASTM 150#

Seat Ring: 2Cr13

Stem: 2Cr13

Disc: 2Cr13 + STL

Available Options

Sizes in 1/2" to 1" ANSI 150 also available on request

ANSI 300 and 600 also available in gate, globe and check valves

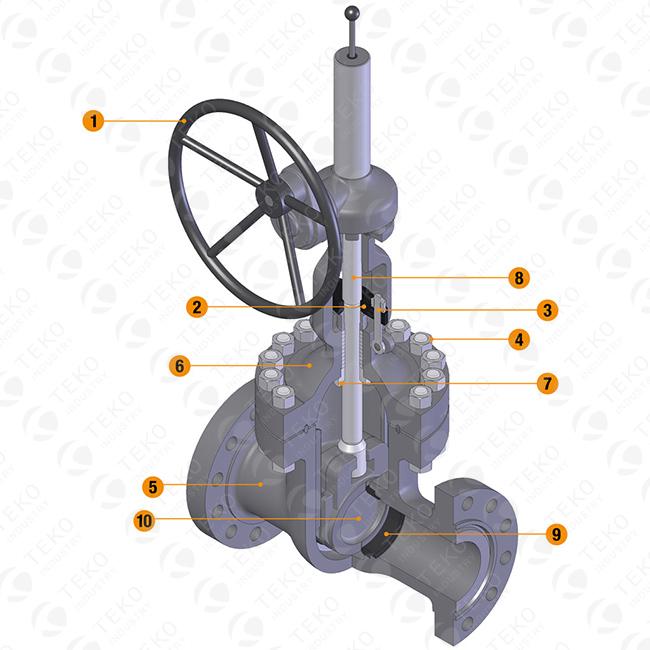

Material List



Coating Surface WCB Material Industrial Valves , Cast Steel Flanged Gate Valve For WOG

No. Parts Name Material
1 Body ASTM A216 Gr.WCB
2 Seat Ring ASTM A105+13Cr
3 Wedge ASTM A216 Gr.WCB+13Cr
4 Stem ASTM A182 F6a
5 Gasket 304SS Jackted Graphite
6 Stud ASTM A193 Gr.B7
7 Nut ASTM A194 Gr.2H
8 Bonnet ASTM A216 Gr.WCB
9 Back Seat ASTM A 276 410
10 Packing Graphite
11 Pin C.S.
12 Gland Bolt ASTM A 193 Gr.B7
13 Gland Nut ASTM A194 Gr.2H
14 Bushing ASTM A276 410
15 Gland ASTm A 216 Gr.WCB
16 Stem Nut Aluminum Bronze
17 Bushing C.S.
18 Handwheel Malleable Iron
19 H.W. Lock Nut C.S.
20 Lubricator Assembly

NOTE: Customer material is also available.
