Product Details:
Payment & Shipping Terms:
|
| Operation: | Handwheel, Bevel Gear | Size: | DN50-DN300 |
|---|---|---|---|
| Body Material: | Carbon Steel, Aluminum | Flange End: | DIN, ANSI |
| Surface Treatment: | Powder Coating | Brand: | RED VALVE |
| High Light: | NR Sleeve Pinch Valves,Zero Leakage Sleeve Pinch Valves |
||

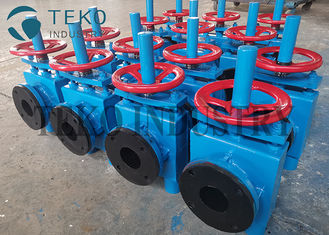

Zero Leakage Red Valve Type Enhanced NR Sleeve Pinch Valves For Power Station
About Pinch Valve
The sealing in pinch valves is achieved throttling the flexible tube of the valve named elastic sleeve which is the only part in contact with the medium.
Pinch valves are suitable for handling slurries and solids in suspension, avoiding contact with the valve mechanism and any contamination towards or from the environment.
Generally, the pinch valve is limited to work at low pressures.
Pinch valves can be mechanically or pressure actuated. it is advised to close tightly the valve to prevent erosion of the flexible tube by the effect of leakage flow.
In pressure actuated pinch valves, the pressure is uniformly distributed over the external side of the flexible tub.
As advantage over the mechanically actuated valves, the pass section is always circular and then bigger particles can go through.
But pressure actuated pinch valves can not be 100% closed and can not be manually controlled since there is a dependency on the flow pressure, this can be resolve with a pressure regulator.
The flexible tube is made of elastomer, usually reinforced. Material selection should be done according to a corrosion-strength commitment since the elastomer strength properties can be reduced by the attack of the corrosive fluid. Fatigue limit of the material must fit on-off valve cycling.
Specification
Why Choose TEKO Pinch Valves ?
| Sleeves Advantage | 1- Natural rubber outer layer keeps sleeve protected under environmental erosion. |
| 2- Tyre Fabrics mid-layer keeps whole sleeve more stronger using even under high pressure process. | |
| 3- Special medium contact layer keeps sleeve in super wear proof performance, extend it’s life 3 times more than common material rubber sleeve. | |
| 4- 20mm superior thickness rubber sleeve to optimize wear life. | |
| Good Performance | 6- Bi-directional Drop-tight shutoff |
| 7- Self-cleaning by full flow bore design. | |
| 8- Excellent throttling performance when automatic actuated. | |
| 9- Easy replacement. | |
| Structure Features | 5- Integral elastomer molded flange |
