Fully Closed Body Ductile Iron Pinch Valve Handwheel Operation For Sand And Gravel

China Fully Closed Body Ductile Iron Pinch Valve Handwheel Operation For Sand And Gravel supplier

Large Image :  Fully Closed Body Ductile Iron Pinch Valve Handwheel Operation For Sand And Gravel

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: GJ541X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Operation: Handwheel Structure: Close Body
Standard Or Nonstandard: Nonstandard Opening Tag: Optional
Flange End: DIN 10 /ANSI 150 Size: Up To DN1200

Cast Iron Body Flange End ANSIB16.5 Corrosion Resistant Bevel Gear Operation Hose Pinch Valve For Iron Ore



Description



TEKO SLURRY PINCH VALVE is a reliable, maintenance-free, cost-effective valve designed for tough slurries, abrasives, and corrosive-chemical applications. The full port design eliminates any dead spots or crevices, seats or bearings where slurry can hang up and impair operation or even cause complete valve failure.



Material List



Body Carbon steel, cast iron Aluminum, plasltic
Stem & Pinch bar carbon steel, 40Cr or SS
Stud Corrosion resistant 8.8 class
Match flange Carbon Steel

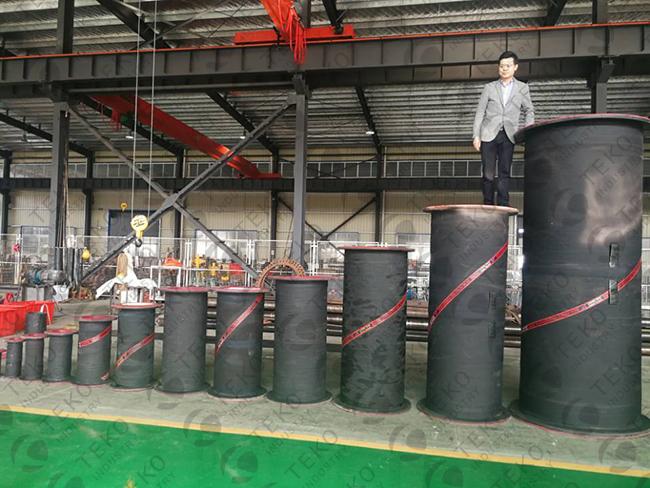

Sleeve Material Natural Rubber, NBR, EPDM, etc



Note: Other materials are available upon request.

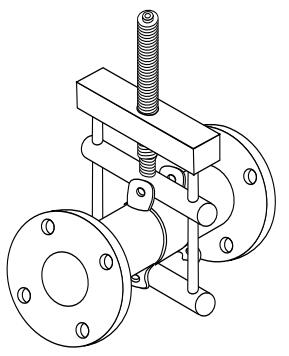

About the positive opening tag



Fully Closed Body Ductile Iron Pinch Valve Handwheel Operation For Sand And Gravel



The positive opening tag are used to ensure, mechanically, that TEKO pinch valve sleeves return to a full round configuration. This is specially important for valves in low-pressure service(less than 2 psi) and essential in vacuum applications.



The positive opening tags are attached to the exterior of the sleeve and are secured by a nylon-reinforced “Belly Band” around the outside of sleeve body. This achieves two major operational advantages. First, the pinch bar pull on the tags does not stress the internal structure of the sleeves, and no interior damange can result and long lift span is maintained.



Secondly, as the “belly band” is pulled from the top and bottom, the sides are drawn toward the centerline of the valve. This mechanically assists the sleeve externally, in addition to the line pressure inside the sleeve, to return the sides of the sleeve to a completely round position. Thus structural stress on the sleeve is minimized and superior performance is enhanced.



Fully Closed Body Ductile Iron Pinch Valve Handwheel Operation For Sand And Gravel
