Regulating Control Slurry Pinch Valve Pneumatic Actuated Flanged End With Positioner

China Regulating Control Slurry Pinch Valve Pneumatic Actuated Flanged End With Positioner supplier

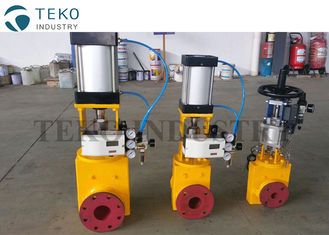

Large Image :  Regulating Control Slurry Pinch Valve Pneumatic Actuated Flanged End With Positioner

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: GJ641X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
End Connection: Flanged Port Size: DN15 To DN700
Operation: Pneumatic Acatued Body Material: Carbon Steel, Aluminum, Cast Iron
Standard Or Nonstandard: Nonstandard Opening Tag: Yes

Regulating Control Pneumatic Actuated Flanged End Slurry Pinch Valve With Positioner





About TEKO Pinch Valve



Our Pneumatic Actuated Control Valve features a simple, proven and cost-effective design. Virtually maintenance-free, the sleeve is the valve’s only wetted par, eliminating possible contamination of the process materials. Due the seatless and packless design, the valve will not become locked or jammed even when dealing with solids in the flow.

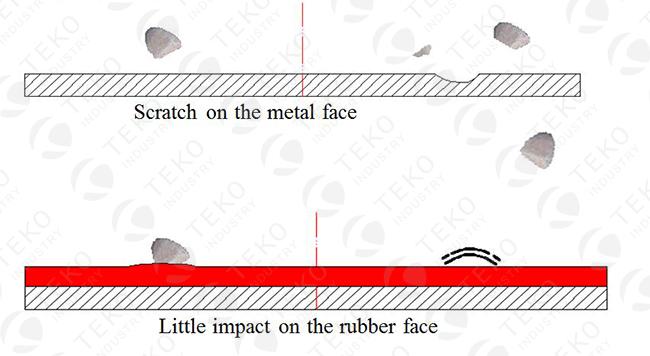

Metal material VS Sleeve Material



Regulating Control Slurry Pinch Valve Pneumatic Actuated Flanged End With Positioner



Abrasion-resistant: Use high-elasticity and low hardness rubber

Chemical-resistant: Use volcanized butyl rubber, which is good at acid, alkali or salty liquid

Noise & vibration Free: High elasticity rubber can usefully reduce the noise and vibration, protecting the environment.





Dimensions

Regulating Control Slurry Pinch Valve Pneumatic Actuated Flanged End With Positioner



Size (mm) L H D0 Dg D1 D Z - Ø α F
DN20 95   70 20 75 90 4-14 45° 3
DN25 100   80 25 85 98 4-14 45° 3
DN32 140 267 90 32 100 140 4-18 45° 4
DN50 195 298 150 50 125 165 4-18 45° 3
DN65 230 344 180 65 145 185 4-18 45° 5
DN80 285 344 200 80 160 200 8-18 22.5° 3
DN100 365 485 260 96 180 220 8-18 22.5° 5
DN125 440 492 320 120 210 250 8-18 22.5° 5
DN150 500 495 400 145 240 285 8-18 22.5° 5
DN200 540 750 460 195 295 340 12-22 15° 5
DN250 630   520 245 355 405 12-20 15° 7.5
DN300 730   600 295 410 460 12-26 15° 7.5
DN350 890   650 345 470 520 12-26 15° 10
DN400 1090   650 395 525 580 16-26 11.25° 10
