Carbon Steel Slurry Pinch Valve For Mining , Manual Pinch Valve With Natural Rubber Sleeve

China Carbon Steel Slurry Pinch Valve For Mining , Manual Pinch Valve With Natural Rubber Sleeve supplier
Carbon Steel Slurry Pinch Valve For Mining , Manual Pinch Valve With Natural Rubber Sleeve supplier Carbon Steel Slurry Pinch Valve For Mining , Manual Pinch Valve With Natural Rubber Sleeve supplier

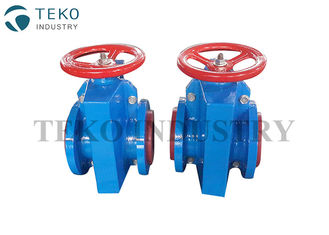

Large Image :  Carbon Steel Slurry Pinch Valve For Mining , Manual Pinch Valve With Natural Rubber Sleeve

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: GJ41X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Structure: Pinch Valve Size: DN20~DN1000
Sleeve Material: Natural Rubber, NBR, EPDM Etc Body Material: WCB
Sleeve Pressure: ≤10 Bar Port: Full Bore

Manual Operation Carbon Steel Natural Rubber Sleeve Slurry Pinch Valve For Mining Applications



Description

TEKO Manual Operation Pinch Valve, With abrasion-resistant sleeve, Carbon Steel fabricated body, with flanged drilled to ANSI B16.5, Full bore, bi-directional seal.



About Pinch Valve

Our manual slurry pinch valve is a control valve which uses a pinching effect to obstruct fluid flow.



Wide Applications

· Bulk and solids handling

· Cement industry

· Waste water industry

· Chemical industry

· Food industry

· Beverage industry

· Ceramic-/Glass-/Plastic industry

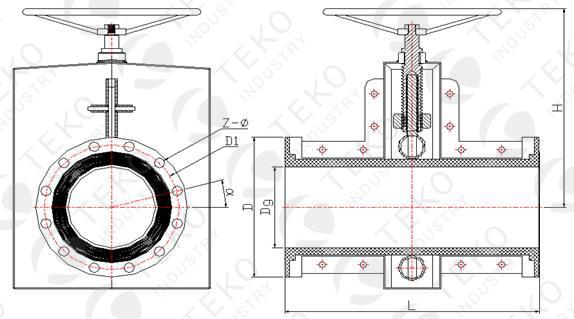

Drawings  & Diemensions



Carbon Steel Slurry Pinch Valve For Mining , Manual Pinch Valve With Natural Rubber Sleeve



Size (mm) L(ST) L (AL) H D0 Dg D1 D Z - Ø α F
DN20 95   101 70 20 75 90 4-14 45° 3
DN25 100 160 109 80 25 85 98 4-14 45° 3
DN32 140 180 147 90 30 100 140 4-18 45° 4
DN40 140 180 147 90 38 110 150 4-18 45° 4
DN50 195 210 162 150 50 125 165 4-18 45° 3
DN65 230 250 195 180 65 145 185 4-18 45° 5
DN80 285 305 237 200 80 160 200 8-18 22.5° 3
DN100 365 345 288 260 96 180 220 8-18 22.5° 5
DN125 440 430 293 320 120 210 250 8-18 22.5° 5
DN150 500 505 447 400 145 240 285 8-22 22.5° 5
DN200 540 650 475 460 195 295 340 12-22 15° 5
DN250 630 820 544 520 245 355 405 12-26 15° 7.5
DN300 730 980 595 600 295 410 460 12-26 15° 7.5
DN350 890   700 650 345 470 520 16-26 11.25° 10
DN400 1090   760 650 395 525 580 16-30 11.25° 10
DN450 1120   820 680 445 585 640 20-30 10
DN500 1240   870 680 495 650 715 20-33 10
DN600 1450   1000 750 595 770 840 20-36 15



Cast iron body for DN50-DN150, Fabricated Steel body for DN200-DN700, Aluminum body for DN20-DN200.
