Short Length Wafer Check Valve Single Plate With Vertical Upstream Installation

China Short Length Wafer Check Valve Single Plate With Vertical Upstream Installation supplier

Large Image :  Short Length Wafer Check Valve Single Plate With Vertical Upstream Installation

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: H74X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Temperature-Pressure: AMSE B16.34 Working Theory: Single Plate
Body Material: Carbon Steel, Stainless Steel Installation: Horizontal Or Vertical (Upstream)
Meida: Water, Sewage Etc Surface Treatment: Chrome Plated

Vertical Upstream Installation Single Check Wafer Check Valve With Short Length





Description



The main difference between standard swing check valves and wafer type swing check valves is that the wafer types do not have the full-bodied arrangement. When the valve opens, the disc is forced into the top of the pipeline. Due to a very short face-to-face dimension the body has a reduced bore. Swing type wafer check valves are virtually maintenance free, the disc is self-centering and protected and it has a special limit stop to protect against pipeline damage.





Application Areas:



TEKO swing type wafer check valves are suitable for use in pipeline systems, mainly cooling water systems;

• Distribution networks/water supply

• Paper mills and plant processes

• Shipbuilding

• Industrial application





Advantages:



• Cost saving simple design

• Easy installation
• Light in weight





Design And Dimensions

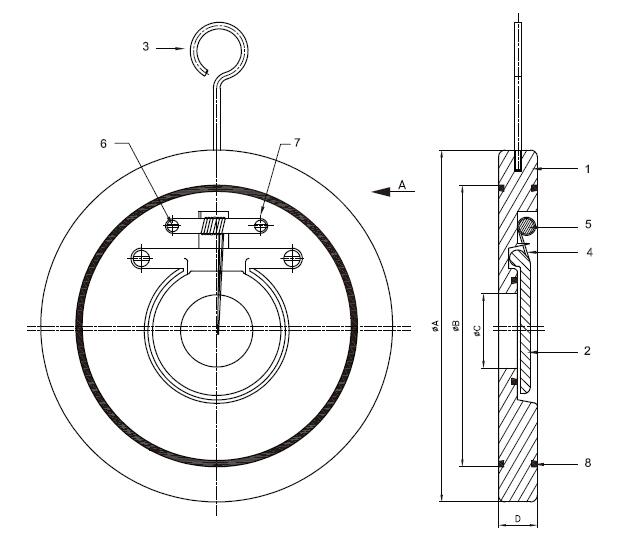

Short Length Wafer Check Valve Single Plate With Vertical Upstream Installation



No Part Name Material
1 Body Chromium Plated Carbon Steel
2 Disc Chromium Plated Carbon Steel
3 Eye Bolt Chromium Plated Carbon Steel
4 O-Ring EPDM
5 O-Ring EPDM
6 Retainer Screw Chromium Plated Carbon Steel
7 Disc Bearing Chromium Plated Carbon Steel



DN

ØA ØB ØC D
mm ins mm mm mm mm
32 85 72 18 14
40 94 80 22 14
50 2 109 91 32 14
65 129 111 40 14
80 3 144 119 54 14
100 4 164 147 70 18
125 5 194 171 92 18
150 6 220 200 112 20
200 8 275 256 154 22
250 10 330 302 192 26
300 12 380 352 227 32
