Lift Type Wafer Spring Loaded Check Valve With Inconel Spring Preventing Local Wear

China Lift Type Wafer Spring Loaded Check Valve With Inconel Spring Preventing Local Wear supplier

Large Image :  Lift Type Wafer Spring Loaded Check Valve With Inconel Spring Preventing Local Wear

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: H71X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Trim Material: Trim5,Tirm8 OR Trim10 Feature: Non-slam
Port Size: 2"-36" Structure: Retainerless Duo Check
Design Standard: API 594 Installation: Vertical

Spring Loaded Lift Type Wafer Check Valve With Inconel Spring



Design

  • Forged or cast body
  • Guided disc pressed with spring on the body seat (Lift type)
  • The disc can rotate on its axis which prevents local wear
  • Body seats are integral or welded



Applications

  • Refining
  • Petrochemical
  • Chemical
  • Power plant



Media

  • water
  • steam
  • gas
  • oil and oil derivates
  • other non aggressive media
    Depending on the valve materials



Advantages

  • Long service life
  • Respect to emission standards
  • Easy handling and maintenance



Standards



Wafer type Lift and Swing Check Valves PN 16 to PN 40 and Class 150 to Class 2500
Face-to face dimensions according to EN 558, API 594 and API 6D
Flanged ends according to EN 1092-1, ASME B16.5

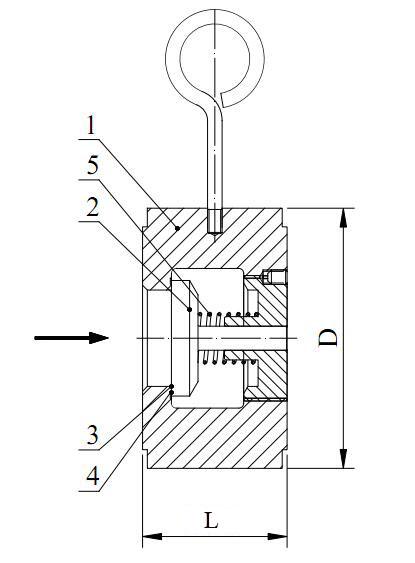

Dimensions

Lift Type Wafer Spring Loaded Check Valve With Inconel Spring Preventing Local Wear





DN 50 65 80 100 150 200 250 300 350 400 450 500 600
[mm] L 60 67 73 73 98 127 146 181 184 191 203 219 222
D 101,7 120,7 133,4 171,5 219,1 276,3 336,6 406,4 447,7 511,2 546,2 603,3 714,4
kg 3,4 5,4 8 12 26 54 92 166 205 277 336 443 630
