Solid Lug Brass Material Wafer Check Valve , Retainerless Non Return Check Valve

China Solid Lug Brass Material Wafer Check Valve , Retainerless Non Return Check Valve supplier

Large Image :  Solid Lug Brass Material Wafer Check Valve , Retainerless Non Return Check Valve

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: LH76X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Workign Pressure: 150LB-600Lb Body Material: Brass
Seal Material: Stellited Or Resilient Seated Structure: Dual Plate Check
End Connection: Lug Design Standard: API 594

Solid Lug Brass Material Retainerless Wafer Check Valve, Wafer Non-return Valve





Since 2010 TEKO Valves has been manufacturing a variety of industrial valves with the highest quality standards. We offers API 594 Dual Plate Check Valves in ASME classes 150 to 600, made from cast steel, stainless steel or alloy steel in wafer, lug, or double flanged ends.



About dual plate wafer check valve?

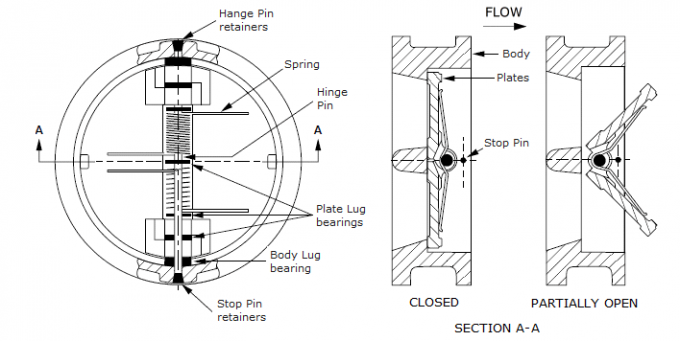

Dual plate check valves, there are two spring-loaded semi-circular plates. The plates are arranged in such a way that the spring forces acts beyond the centre of area of each plate and the fluid force acts within the same. This fulcrum causes the heel to open first, preventing rubbing of the seal surface prior to normal opening.



Solid Lug Brass Material Wafer Check Valve , Retainerless Non Return Check Valve





Technical Data



Brand TEKO
Model SKS 310D
Body Brass
Disc Brass
Stem SS410
Spring Material Brass
Temperature Rating -15°C to +80°C
Pressure Rating (PN) PN 16/ANSI 150Lb
End Connection Flanged Ends





Additional options for our API 594 Dual Plate Check Valves include:

· Alternate valve materials such as chrome and stainless steel alloys

· Alternate trim materials

· Higher Pressure Classes

· NACE service

· Special cleaning for applications such as oxygen or chlorine

· Other options available as specified or requested
