Enclosed Body Pinch Valve With Abrasion Resisitant Natural Rubber Sleeve For Mining

China Enclosed Body Pinch Valve With Abrasion Resisitant Natural Rubber Sleeve For Mining supplier

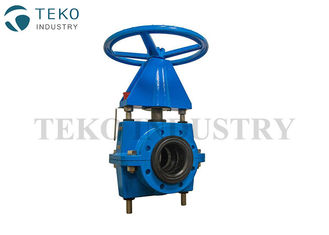

Large Image :  Enclosed Body Pinch Valve With Abrasion Resisitant Natural Rubber Sleeve For Mining

Product Details:

Place of Origin: Made In China
Brand Name: TEKO
Certification: CE Certificate
Model Number: G41X

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By polywooden cases
Delivery Time: 15 days after deposite
Payment Terms: D/A, L/C, T/T, Western Union
Supply Ability: 300 tons per month
Contact Now
Detailed Product Description
Body: Enclosed Or Open Body Flange End: DIN Or ANSI
Face To Face: Mill Standard Sleeve: High Abrasion Resistant Rubber
Stem: 2Cr13 Body Material: WCB, Aluminum, Ductil Iron

Abrasion Resistant Natural Rubber Sleeve Enclosed Body Pinch Valve For Mining Application





Introduction



TEKO Valve Control Pinch Valves offer maximum durability with precise control and virtually no maintenance. A heavy-duty, rugged pinch mechanism positions the sleeve, resulting in accurate flow control. Our Control Pinch Valves have no packing to maintain or seats to wear, no fugitive emissions and no need for expensive body alloys. Variable orifice and cone sleeves can be specified to further enhance control performance and match the exact CV level desired. True feedback positioning is accomplished through the direct linkage of the pneumatic positioner to the valve stem shaft, with no splitting of the positioner output. TEKO Valve Control Products are available with pneumatic, electropneumatic, or digital positioners to link up to all control systems.





Specifications



Size Range: 1" (25mm) to 60" (1500mm)
Temperature: -50degF to 250degF
Max. Working Pressure: Up to 300psi (20bar) (consult for higher pressures)
Standard Face-to-Face: ASME B-16.10, DIN 3202, ISO 5732
Flange Drilling: ANSI 150#, ANSI 300#, DIN, JIS, AS
Actuation:Manual self-lubricating hand wheel, with or without gear reducer
Tube Material: NR, PGR, EPDM, NBR, IIR, CR, FPM, CSM (View Chart)
In-Line Tube Change: Yes
Body Material:Ductile iron (CRN available) or aluminum





Valve Advantages & Key Features

  • Sealed & lubricated closing mechanism
  • In-line and quick tube change with patented tube folds for durability & self-cleaning
  • Standard Face-to-Face
  • Exterior & interior corrosion resistant Fusion Bonded Epoxy Powder coating



Available Configurations'


CONTROL – MODULATING (Sizing available)
ISOLATION – ON/OFF





Applications



Power plant, Coal coking plant Coal Washery Wastewater treatment Steel Corporation
Orel Mine Chemical Industry Aluminum Company Corrosive Liquid
Pharmaceutical industry Food process General engineering Sludge Control
