Product Details:
Payment & Shipping Terms:
|
Design Standard: | API 600/API 602 | Test Standard: | API 598 |
---|---|---|---|
Port Size: | NPS 2"-48" | Applications: | WOG Etc. |
Pressure Rating: | 150Lb-1500Lb | Trim Number: | Trim 1#/5#/8#/10# As API600 |
High Light: | electric actuated gate valve,motor operated gate valve |

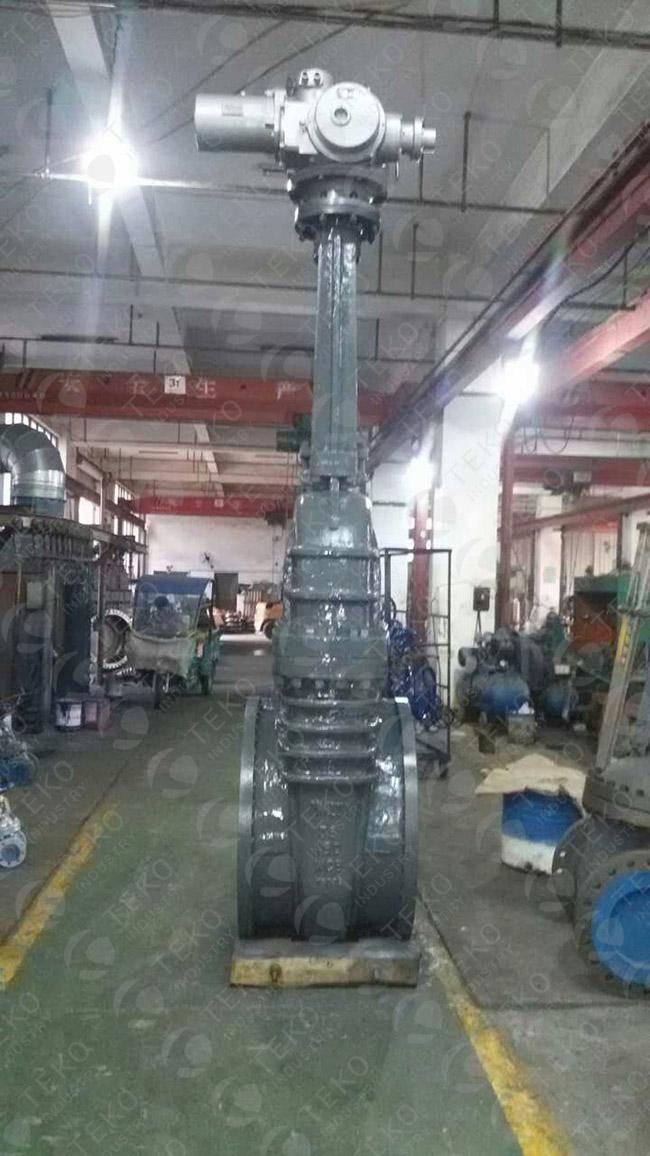

Large Size 2"-36" Inch Cast Steel Flanged End Flexible Wedge Gate Valve
Gate Valves
TEKO Valves are a professional manufactuer of industrial gate valves in different materials such as: bronze, iron, stainless steel and cast steel. TEKO Valves offers Gate Valves in two different forms, parallel and wedge-shaped. Parallel Gate Valves are used to control the flow pressure while Wedge-Shaped Gate Valves are most commonly used and allow for fluids to be tightly shut off.
Gate valves are designed to turn the flow of a liquid on or off by restricting or opening the flow with a round or rectangular wedge. Gate Valves can also control the pressure of liquid flow through pipes or valves.
Features
* Industries Steel Gate Valves have been designed to meet the requirements of API 600 / BS 1414 / API 603 / API 6D /ASME B 16.34
* Face to Face and End to End dimensions conform to ASME B 16.10 /BS 2080 / DIN
* End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN
* Butt weld end dimensions conform to ASME B 16.25
* The stem nut design allows for the removal of the hand-wheel while keeping the Stem and Gate in a fixed position.
* Anti-frictional Ball bearings are provided in Larger sizes and classes.
* The strength of Stem to Gate connection is stronger than the strength of the Stem at the root of the operating thread
* Outside screw and yoke construction
* All the valves provided with backseat arrangement
* The gland is of self-aligning two piece type Deep stuffing box
* Body ports are streamlined, permitting unobstructed flow, reduces turbulence, results in lower pressure drop & lower erosion
* The Seat-rings are cylindrical bottom seated type having ample cross section for strength are provided with welded in. In case of SS valves, the Seat-rings are integral to Body
* The Body to Bonnet joint is flat in ASME 150# valves, a male and female joint is used in 300# & 600# and ring joint is used in higher pressure rating
* Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77
Material
Body | ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB |
Bonnet | ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB |
Wedge | ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB |
Stem | ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L |
Seat Rings | ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB |
Back Seat Bushing | ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L |
Gland | ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L |
Gland Flange | Carbon Steel / Stainless Steel |
Stem Nut | ASTM A 439 Gr.D2 / Al. Bronze |
Lock Nut | Carbon Steel / SS 304 |
Gland Packing | Graphite Asbestos / Graphoil / PTFE |
Bonnet Gasket | Corrugated Soft Iron / Corrugated SS / Spiral Wound SS 304 with Asbestos or Graphoil / Octagonal Ring |
Gland Eye - Bolt & Nut | Carbon Steel / Stainless Steel |
Cross Bolts & Nuts | Carbon Steel / Stainless Steel |
Hand Wheel | Carbon Steel |
Hand Wheel Nut | Carbon Steel |
Grease Nipple | Carbon Steel |
Grub Screw | Carbon Steel |
Studs / Bolts | ASTM A 193 B7 / A 193 B7M / A 193 BBM / A 320 L7 |
Nut | ASTM A 194 2H / A 194 8 / A 194 8M / A 194 4 / 7 |
