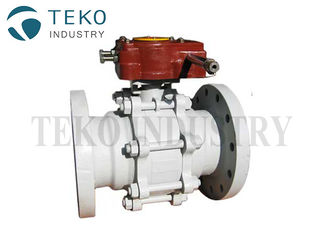

Fire Safe Stainless Steel API 607 Flanged Ball Valve

Certification
China TEKO Industry Co., Limited certification
China TEKO Industry Co., Limited certification
Dear Peter, Highly appreciate your sound service. The valves have well arrived and looks every well. Regards, Andrea

—— Mr. Andrea Arredondo

Hi, my friend. Finally we got the bidder and nice to cooperate with you.You prefession and quick reaction was the firm support for the business.

—— Mr.Hiep Le Hao

GOOD DAY, MY FRIEND. WELL RECEIVED YOUR VLAVES, GOOD QUALITY AND NICE PAITING. THANK YOU!

—— Mr. MARCELO ZANON

Good da, we just got the appoval from our customer. Your experiences helped a lot in the project. The final drawing is also very professional. Cheers!

—— Mr. Scott Hornick

compramos de TEKO desde 2011, continuaremos la cooperación. La calidad es buena y el precio es bueno.

—— Ing. Hugo Diaz

I'm Online Chat Now

Fire Safe Stainless Steel API 607 Flanged Ball Valve

Fire Safe Stainless Steel API 607 Flanged Ball Valve
Fire Safe Stainless Steel API 607 Flanged Ball Valve

Large Image :  Fire Safe Stainless Steel API 607 Flanged Ball Valve

Product Details:
Place of Origin: China
Brand Name: TEKO
Certification: CE Certificate
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By wooden cases
Delivery Time: 35 days after deposit
Payment Terms: L/C
Supply Ability: 100 tons per month
Detailed Product Description
Material: WCB End: Weld End
Pressure Rating: 150LB-900Lb Operation: Peumatic
Seat Materail: Fire Safe Design Duty: ON-OFF
High Light:

flanged end ball valve

,

v port ball valve

Fire Safe API607 Stainless Steel Ball Type Flange Valve For Chemical Plant



API 607 Fire Safe Tested Ball Valve
Single / Two / Three Piece Design,
Full Bore / Regular (Reduce) Bore



Description



TEKO Manufacture Fire Safe Ball Valve as per API 607 standard in Full / Reduced Port with Antistatic Device, Blowout Proof Stem with various choice of operation.



Fire Safe Stainless Steel API 607 Flanged Ball Valve 0



Floating / Trunnion Mounted
We produce both Floating & Trunnion Mounted Fires Safe Ball Valves. In the floating ball design, where sealing takes place by allowing the Ball under pressure to move towards the downstream seat to effect tight seal. For higher sizes and pressure ratings Trunnion mounted ball valves are preferred by industry.



Valve Operation
Fire Sate Ball Valves are generally supplied with manual Hand Lever or Gear Operated, depending on valve size. We are also offering Ball Valves with either Pneumatic (Double Acting / Single Acting – Spring Return) or Electrical actuator operated for automation.

Wide Range of Body Seat, Seal & Packing
The Fire Safe Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client.

Features:



  • Blowout Proof Stem
  • Anti Static Device
  • Fire Safe Seat Design
  • Double Body Sealing Ensures Positive Body Joint Sealing Against Pipeline Stresses
  • Multiple Stem Sealing
  • Live loaded Stem Design Meets Stringent Fugitive Norms
  • Specially designed seats and seals in a variety of materials to suit specific applications
  • Fire Safe Design Confirms to API 607, Valves are tested and Fire Safe certified by Bureau Veritas.
  • Design standard API 6D, BS EN ISO 17292 and ANSI B16.34
  • Multiport Fire Safe Ball Valves, Valves with Extended Stems, Valves for Underground Applications etc. also available on request.

Design & Testing International Standard:

Valve Design : BS EN ISO 17292 (BS 5351) / API 6D / ASME B 16.34 / BE EN ISO 12516
Pressure Testing : API 598 / API 6D / BS EN 12266 I
Fire Testing : API 607 / BS EN ISO 1266 II
Face To Face : As Per ANSI B 16.10
Flange Drilling : ANSI B 16.5, Raised Face, Class 150 / 300 / 600
Screwed End : ANSI B 1.20.1 (BSP/NPT)
Socket Weld End : ANSI B 16.11
Butt Weld End : ANSI B 16.25
Quality Assurance : ISO 9001
