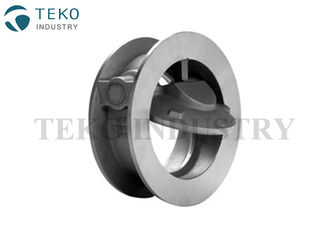

SS Single Door Spring Loaded Wafer Check Valve With No Water Hammer

SS Single Door Spring Loaded Wafer Check Valve With No Water Hammer
SS Single Door Spring Loaded Wafer Check Valve With No Water Hammer

Large Image :  SS Single Door Spring Loaded Wafer Check Valve With No Water Hammer

Product Details:
Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: H76Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Detailed Product Description
Workign Pressure: 150LB-600Lb Body Material: WCB, CF8, CF8M Etc
Seal Material: Depostied Or Intergrated End Connection: Wafer End
Design Standard: API 594 Material: Casting,Stainless Steel,CF8M,Stainless Steel/CF8
High Light:

wafer type check valve

,

wafer swing check valve

Stainless steel Single Door Spring Loaded Wafer Check Valve With No Water Hammer



Quick Info



Description WAFER CHECK VALVE, CLASS 150
Make TEKO
Type Single Door, Spring Loaded (Inconel X750) – 15mm to 80mm
Double Door, Spring Loaded (Inconel X750) – 50mm to 300mm
Body Cast Steel (ASTM A216 ‐ WCB) or Stainless Steel (ASTM A351 – CF8M)
Disc Stainless Steel (ASTM A351 CF8M)
Seat Single Door – Integral 316SS
Double Door – Metal to Metal
Standards Design: API 594, ASME B16.34
Face to Face: API 594
End: ASME B16.5
Testing: API 598





Features


Size: DN50 ~ DN300 (2" ~ 12")
Class: 150LB-900Lb
Single Disc Wafer Type
Dual Corrosion Resistant Springs
Bubble Tight Shut Off

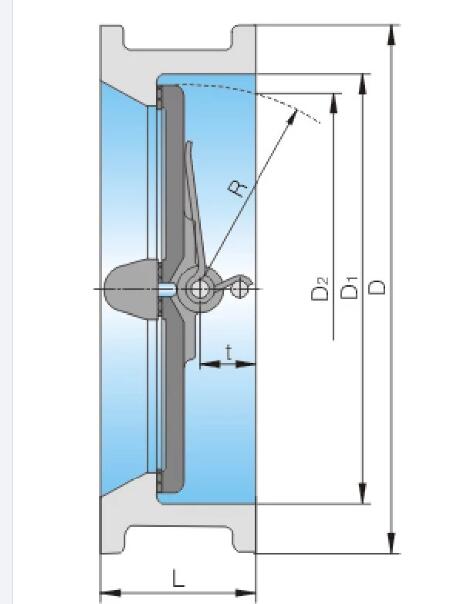

SS Single Door Spring Loaded Wafer Check Valve With No Water Hammer 0



Pressure test



Pressure test according to standard: API 598
API 598 150Lb Shell test 3.0MPa
Seat test 2.2MPa
300Lb Shell test 7.5MPa
Seat test 5.5MPa
