Stainless Steel One Piece Wafer Type Reduced Bore Ball Valve Class 150 For WOG

Large Image : Stainless Steel One Piece Wafer Type Reduced Bore Ball Valve Class 150 For WOG

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Q71F

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Driven By:	Lever Or Pneumatic	Body Material:	WCB, CF8M, CF8, CF3, CF3M
Bore:	Standard Bore	Seat Material:	RPTFE, PTFE
Working Temperature:	-25~-150℃	End Connection:	Wafer
Size:	1/2"~8"	Warranty:	12 Months
High Light:	flanged end ball valve , v port ball valve

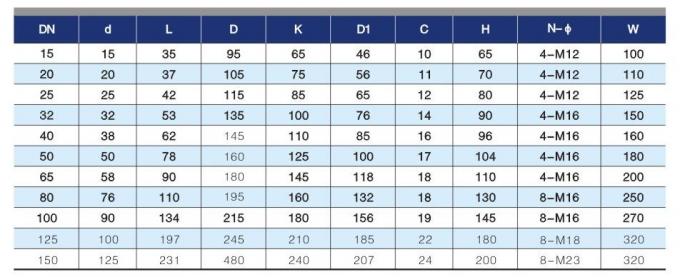

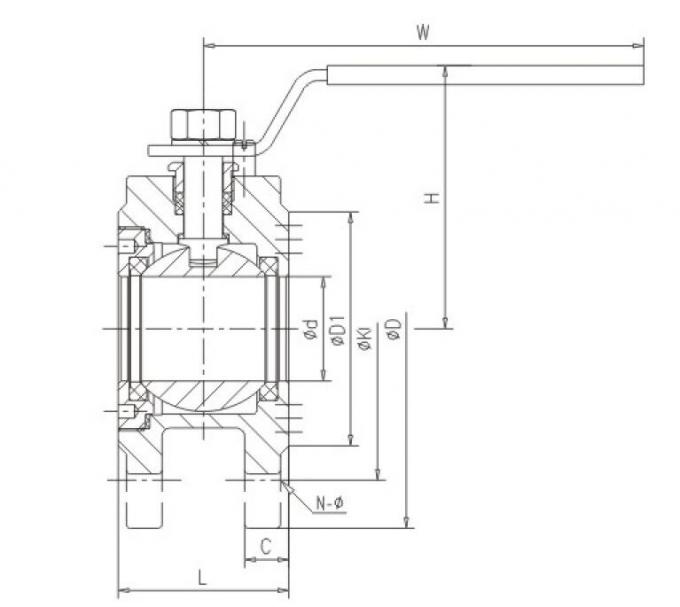

DimensionStainless Steel One Piece Wafer Type Reduced Bore Ball Valve Class 150 For WOG

Wafer to suit PN16, Stainless Steel Solid Body, Ball & Stem, PTFE Seats, Lever Operated Rated PN16, Temperature -20°C to 160°C. Cast Double Flanged Body and Firesafe Option Available.

Technical features:

Body valve stainless steel SS316

Ball seats RPTFE

Direct actuator installation ISO 5211

O-ring stem FPM

To be assembled 16 bar

Working temperature -20°C – +180°C

Blow-out proof stem

Size
1/2” - 3/4” - 1” - 1” 1/4 - 1” 1/2 - 2” - 2” 1/2 - 3” - 4”

Main Material

No.	PART NAME	MATERIAL
1	BODY	AISI 316 - CF8M
2	END CONNECTION	AISI 316
3	BALL	AISI 316
4	BALL SEATS	P.T.F.E + 15% GLASS
5	RING	FKM (Viton)
6	THRUST WASHER	P.T.F.E
7	RING	FKM (Viton)
8	STEM SEAL	P.T.F.E
9	PACKING GLAND	STEEL
10	END STOP	AISI 430 (DN 10 - DN 50) STEEL (DN 65 - DN 200)
11	SPRING WASHER	STEEL
12	NUT	STEEL
13	STEM	AISI 316
14	HANDLE	STEEL
15	HANDLE DN 150-200	STEEL
16	SCREW	STEEL
17	SCREW	STEEL
18	BODY HANDLE DN150-200	CAST IRON
