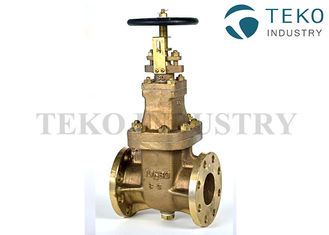

Non Rising Stem Manual Operated BC6 Material Marine Gate Valves
Quick Review
Name | Bronze flange gate valve |
Size | 1/2"~4"; DN15~DN100 |
Normal pressure | JIS 10K |
Design standard | JIS F7368 |
Marked | MSS SP-25 |
End flange | JIS; ANSI B 16.5 ; EN1092,DIN2543~DIN2547,AS2129 |
Face to Face | ANSI B 16.10,API 6D; DIN3202,EN558-1,EN12982,ISO 5752 |
Top flange | ISO 5211 |
Test standard | BS5154,API 598,BS EN 12266-1 |
Medium | sea water, oil, liquefied gas,steam |
Temperature | 20°C≤T≤150°C |
Operation Model | WheelHand Operated , Gear actuator, Electric actuator |
Structure
- Full Port or Standard Port |
- Bolted Bonnet |
- Non-Rising Stem |
-Clockwise closing direction |
- Solid or Flexible Wedge Gate |
- Integeral Seat |
- Design: JIS F7368 |
- Flanged Ends to JIS B2220 |
- Body material: Bronze,Al bronze |
Main Part & Materials
Part Names | Part Materials |
Body | Bronze,Al bronze |
Wedge | Bronze,Al bronze |
Bonnet | Bronze,Al bronze |
Stem | C37700 |
Gland | C37700 |
Seal faceing | Bronze,Al bronze (C95800, C83600, C84400, B62) |
Packing | PTFE (PTFE) |
Bonnet Gasket | PTFE (PTFE) |
Handwheel | 1/2"-2"Aluminium; 2-1/2"-4"Cast iron |
Handwheel Nut | C37700,SS304,SS316 |
Dimension
MODEL No. | Face to face | Flange diam. | Flange Pitch | Flange Hole | Weight |
L(mm) | D(mm) | C(mm) | n*d(mm) | W(kgs) | |
F7368 10K15 | 100 | 95 | 70 | 4×Ф15 | 2.96 |
F7368 10K20 | 110 | 100 | 75 | 4×Ф15 | 3.89 |
F7368 10K25 | 120 | 125 | 90 | 4×Ф19 | 5.82 |
F7368 10K32 | 140 | 135 | 100 | 4×Ф19 | 7.52 |
F7368 10K40 | 150 | 140 | 105 | 4×Ф19 | 9.71 |
F7368 10K50 | 200 | 155 | 120 | 4×Ф19 | 19.4 |
F7368 10K65 | 220 | 175 | 140 | 4×Ф19 | 27.6 |
