F7319 10K Cast Steel SDNR Straight Type JIS Globe Valve For Pipe System

F7319 10K Cast Steel SDNR Straight Type JIS Globe Valve For Pipe System
F7319 10K Cast Steel SDNR Straight Type JIS Globe Valve For Pipe System

Large Image :  F7319 10K Cast Steel SDNR Straight Type JIS Globe Valve For Pipe System

Product Details:
Place of Origin: Made In China
Brand Name: TEKO
Certification: CCS
Model Number: JIS F7319
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: By wooden cases
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 tons per month
Detailed Product Description
Material: Cast Steel FC Standard No.: JIS F7319
Pressure Rating: JIS 10K Type: Straight Type
End Connection: Flange Application: Ship Building, Marine Applications
High Light:

marine globe valve

,

marine check valve

JIS F7319 10K Cast Steel SDNR Straight Type Globe Valve For Marine Use



Descriptions



TEKO JIS 7319 Cast Steel Globe Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature under 300 centigrade degree.



Design Standard: JIS F7319-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -10K



Main Material:



1-Body:Cast Steel (SC480)

2-Seat: Stainless Steel (2Cr13, SCS2)

3-Disc: Stainless Steel (2Cr13, SCS2)

4-Stem: SUS403

5-Bonnet: Cast Steel (SC480)

6-Handwheel: Cast Iron (FC200)

7-Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

8-Gasket: non-asbestos

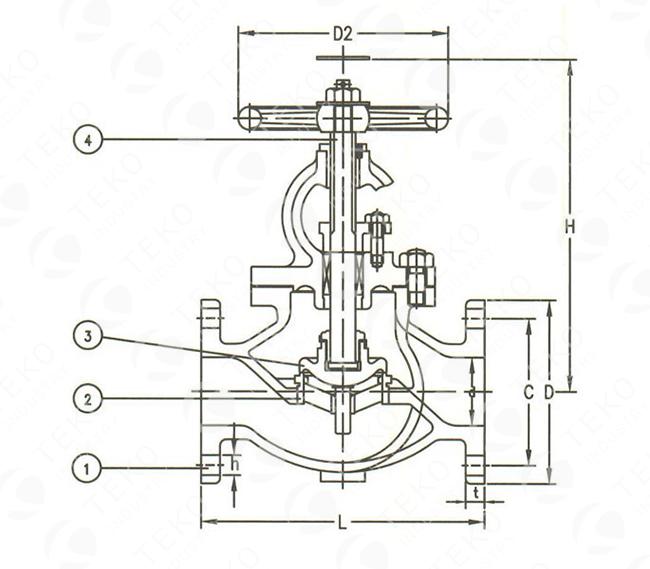

Drawing & Dimensions of Marine Globe Valve



F7319 10K Cast Steel SDNR Straight Type JIS Globe Valve For Pipe System 0



Item NO. Size L (mm) D (mm) C (mm) Number of Holes h
F7319-050 50 220 155 120 4 19
F7319-065 65 270 175 140 4 19
F7319-080 80 300 185 150 8 19
F7319-100 100 350 210 175 8 19
F7319-125 125 420 250 210 8 23
F7319-150 150 490 280 240 8 23
F7319-200 200 570 330 290 12 23
F7319-250 250 740 400 355 12 25
F7319-300 300 840 445 400 16 25
